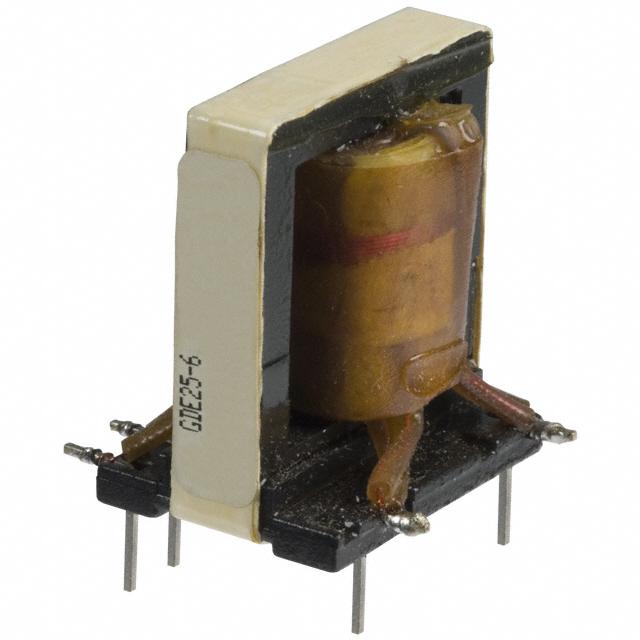

GDE25-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GDE25-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GDE25-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | GDE25-6 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 1.75 OHM DUAL GATE DRIVE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.433 | $4.012 | $3.703 | $3.58 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.481 | $3.432 | $3.395 | $3.333 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | GDE25-6 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | TRANSF 1.75 OHM DUAL GATE DRIVE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10565 pcs | Data sheet | GDE25-6 |
| Category | Transformers | Weight | 0.05 oz (1.42g) |
| Turns Ratio - Primary:Secondary | 1:1.5:1.5 | Transformer Type | Gate Drive |
| Size / Dimension | 1.100" L x 1.040" W (27.94mm x 26.42mm) | Series | GDE25 |
| Packaging | Bulk | Other Names | 10557 237-1116 GDE256 |
| Operating Temperature | - | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 680µH | Height - Seated (Max) | 1.200" (30.48mm) |
| Energy Time (E.T.) | 540V µS |
