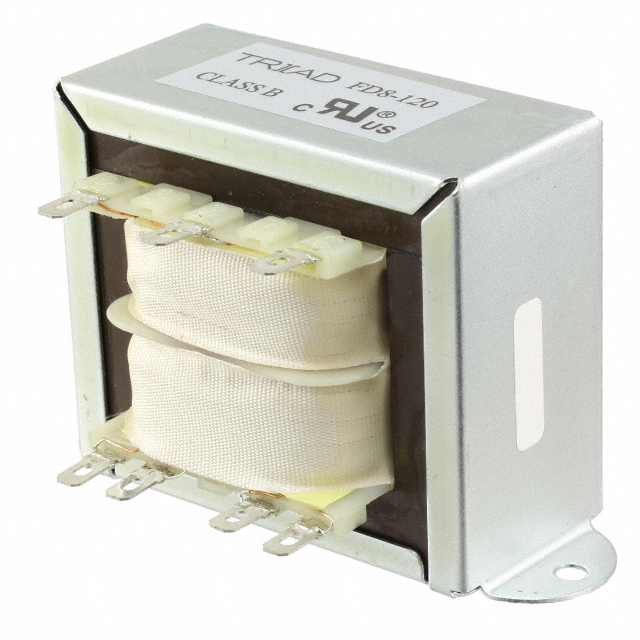

FD8-120
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FD8-120 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FD8-120 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FD8-120 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $7.38 | $6.512 | $6.295 | $5.644 | $5.427 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | FD8-120 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | XFRMR LAMINATED THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7014 pcs | Data sheet | FD8-120 DataSheet |
| Category | Transformers | Weight | 2.8 lbs (1.3kg) |
| Voltage - Secondary (Full Load) | 120V | Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 2500VAC | Type | Laminated Core |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) | Size / Dimension | 102.39mm L x 57.15mm W |
| Series | Quick Pack | Secondary Winding(s) | Single |
| Primary Winding(s) | Dual | Power - Max | 100 VA |
| Other Names | 237-1766 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 65.07mm |
| Current - Output (Max) | 850mA | Center Tap | Yes |
