F5-16

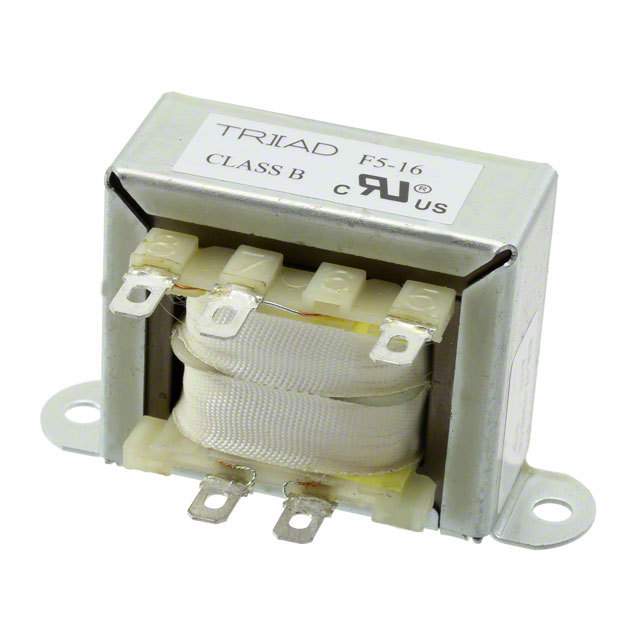

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F5-16 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F5-16 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F5-16 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.614 | $2.769 | $2.346 | $2.308 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.192 | $2.169 | $2.138 | $2.115 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | F5-16 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | XFRMR LAMINATED THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17909 pcs | Data sheet | F5-16 DataSheet |
| Category | Transformers | Weight | 0.7 lb (317.51g) |
| Voltage - Secondary (Full Load) | 16V | Voltage - Primary | 115V |
| Voltage - Isolation | 2500VAC | Type | Laminated Core |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) | Size / Dimension | 71.42mm L x 34.93mm W |
| Series | Quick Pack | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 12 VA |
| Other Names | 237-1692 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 41.28mm |
| Current - Output (Max) | 800mA | Center Tap | Yes |
