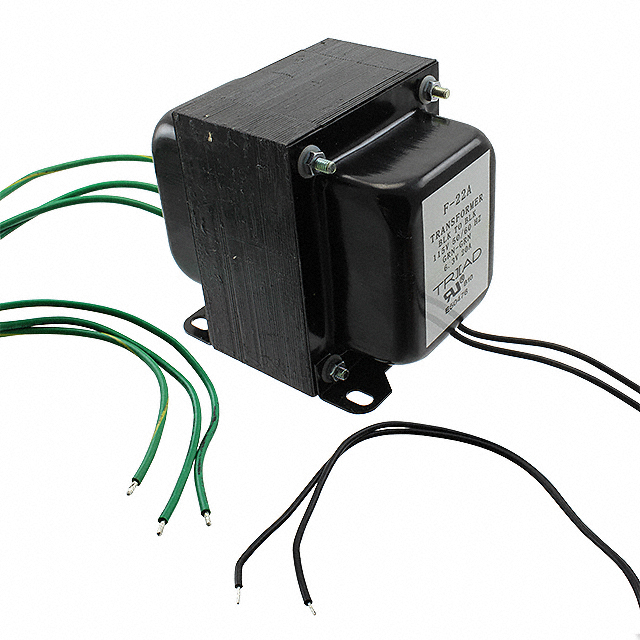

F-22A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-22A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-22A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-22A |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $13.048 | $11.512 | $11.128 | $9.977 | $9.593 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | F-22A | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER XFMR CHASSIS MOUNT W/LEADS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3794 pcs | Data sheet | F-22A Datasheet |
| Category | Transformers | Weight | 7 lbs (3.2kg) |
| Voltage - Secondary (Full Load) | 6.3V | Voltage - Primary | 115V |
| Voltage - Isolation | 2000Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 83.33mm L x 104.77mm W |
| Series | Single Secondary | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 126 VA |
| Other Names | 237-1943 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 98.43mm |
| Current - Output (Max) | 20A | Center Tap | Yes |
