CST306-1T-B

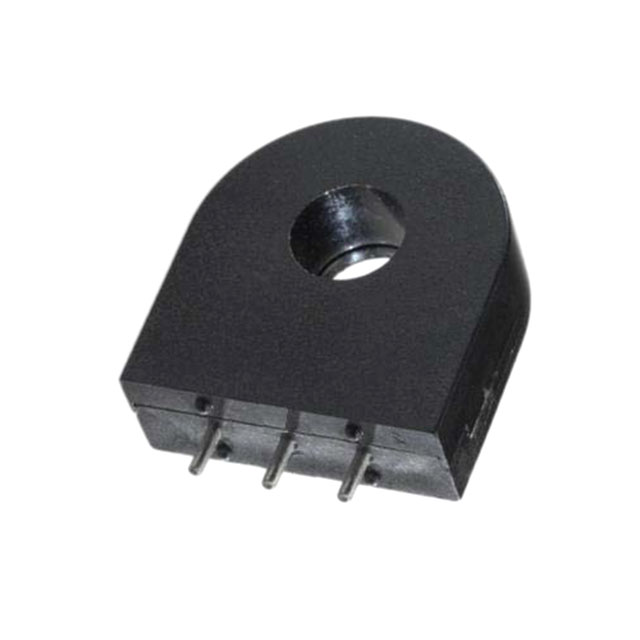

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CST306-1T-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CST306-1T-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CST306-1T-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 35A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 720 pcs | ||||
|---|---|---|---|---|---|
| $1.169 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CST306-1T-B | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CURR SENSE XFMR 35A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28937 pcs | Data sheet | CST306-1T Datasheet |
| Category | Transformers | Type | Non-Invasive (Solid Core) |
| Turns Ratio - Primary:Secondary | - | Termination Style | PC Pin |
| Size / Dimension | 0.690" L x 0.385" W (17.53mm x 9.78mm) | Series | CST |
| Ratings | - | Packaging | Bulk |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 42 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 3.5mH | Height - Seated (Max) | 0.915" (23.24mm) |
| Frequency Range | 20kHz ~ 200kHz | Energy Time (E.T.) | 500V µS |
| Detailed Description | 35A Current Sense Transformer 20kHz ~ 200kHz 340 mOhm Max 3.5mH Through Hole | DC Resistance (DCR) | 340 mOhm Max |
| Current Ratio | 50CT:1 | Current Rating | 35A |
