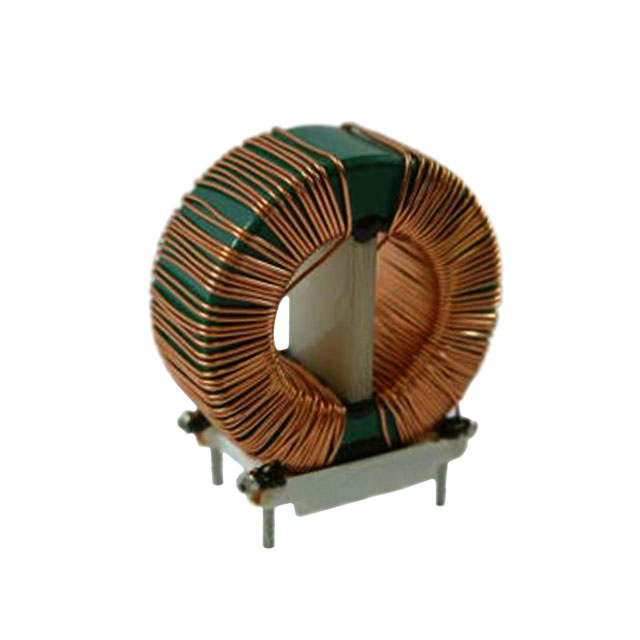

CMT-8115-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMT-8115-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMT-8115-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMT-8115-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 1.2MH 16A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 140 pcs | ||||
|---|---|---|---|---|---|
| $1.765 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CMT-8115-B | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CMC 1.2MH 16A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21308 pcs | Data sheet | CMT-8115 |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.500" L x 0.800" W (38.10mm x 20.32mm) |
| Series | CMT | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Operating Temperature | -55°C ~ 105°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 1.2mH @ 1kHz | Height (Max) | 1.530" (38.86mm) |
| Filter Type | Power Line | Features | ESD |
| Detailed Description | 1.2mH @ 1kHz 2 Line Common Mode Choke Through Hole 16A DCR 6 mOhm | DC Resistance (DCR) (Max) | 6 mOhm |
| Current Rating (Max) | 16A | Approvals | - |
