AX02-303R9

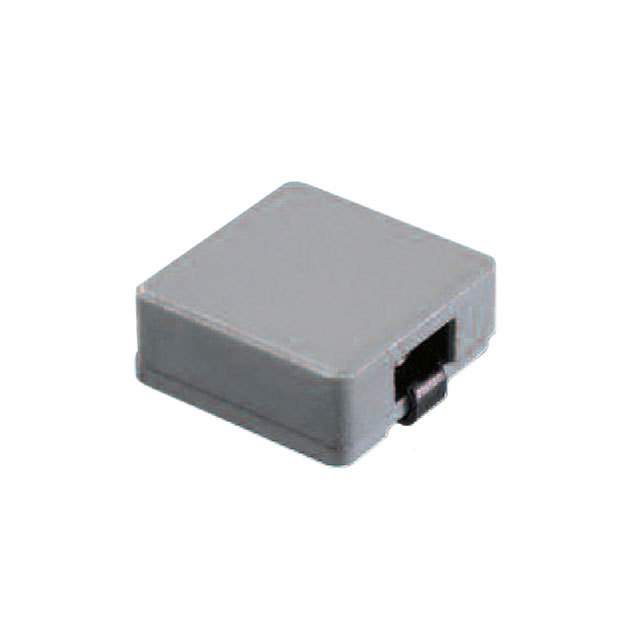

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AX02-303R9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AX02-303R9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AX02-303R9 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | FIXED IND 3.9UH 10A 6.8 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 480 pcs | ||||
|---|---|---|---|---|---|
| $0.394 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AX02-303R9 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | FIXED IND 3.9UH 10A 6.8 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83704 pcs | Data sheet | AX02 Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | SMD |
| Size / Dimension | 0.524" L x 0.591" W (13.30mm x 15.00mm) | Shielding | Shielded |
| Series | AX02 | Ratings | - |
| Q @ Freq | - | Package / Case | 2-SMD, J-Lead |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 3.9µH | Height - Seated (Max) | 0.256" (6.50mm) |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 3.9µH Shielded Wirewound Inductor 10A 6.8 mOhm Max 2-SMD, J-Lead | DC Resistance (DCR) | 6.8 mOhm Max |
| Current Rating | 10A | Current - Saturation | 18A |
