TPH3212PS

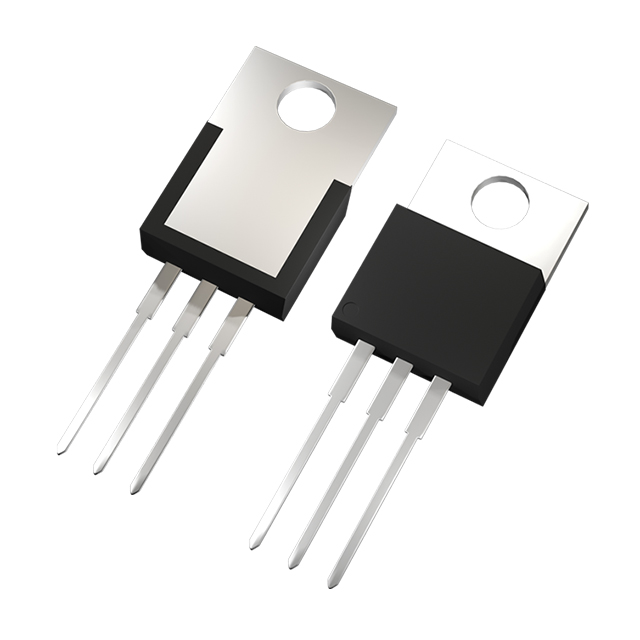

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPH3212PS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPH3212PS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPH3212PS |
|---|---|
| Manufacturer | Transphorm |
| Description | MOSFET N-CH 650V 27A TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $6.166 | $5.605 | $5.185 | $4.764 | $4.344 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TPH3212PS | Manufacturer | Transphorm |
|---|---|---|---|
| Description | MOSFET N-CH 650V 27A TO220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9047 pcs | Data sheet | TPH3212PS |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.6V @ 400uA |
| Vgs (Max) | ±18V | Technology | GaNFET (Gallium Nitride) |
| Supplier Device Package | TO-220 | Series | - |
| Rds On (Max) @ Id, Vgs | 72 mOhm @ 17A, 8V | Power Dissipation (Max) | 104W (Tc) |
| Packaging | Tube | Package / Case | TO-220-3 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1130pF @ 400V |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 8V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 8V |
| Drain to Source Voltage (Vdss) | 650V | Detailed Description | N-Channel 650V 27A (Tc) 104W (Tc) Through Hole TO-220 |
| Current - Continuous Drain (Id) @ 25°C | 27A (Tc) |
