TPWR8004PL,L1Q

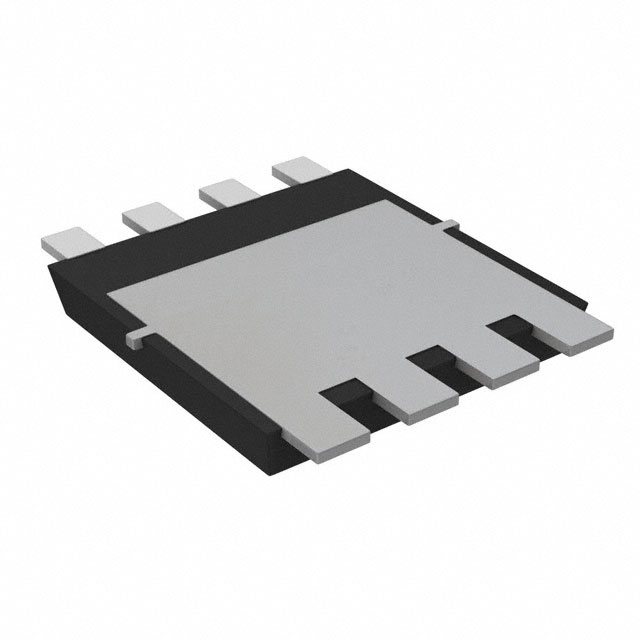

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPWR8004PL,L1Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPWR8004PL,L1Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPWR8004PL,L1Q |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 40V 150A 8DSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.574 | $1.406 | $1.153 | $0.934 | $0.787 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TPWR8004PL,L1Q | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 40V 150A 8DSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50277 pcs | Data sheet | TPWR8004PL |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.4V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-DSOP Advance | Series | U-MOSIX-H |
| Rds On (Max) @ Id, Vgs | 0.8 mOhm @ 50A, 10V | Power Dissipation (Max) | 1W (Ta), 170W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerVDFN |
| Other Names | TPWR8004PLL1QCT | Operating Temperature | 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 9600pF @ 20V |
| Gate Charge (Qg) (Max) @ Vgs | 103nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 150A (Tc) 1W (Ta), 170W (Tc) Surface Mount 8-DSOP Advance |
| Current - Continuous Drain (Id) @ 25°C | 150A (Tc) |
