TPH5R906NH,L1Q

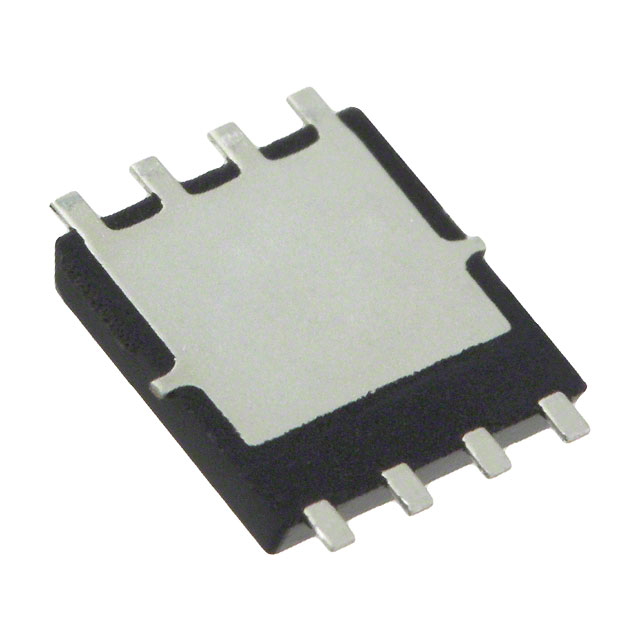

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPH5R906NH,L1Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPH5R906NH,L1Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPH5R906NH,L1Q |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N CH 60V 28A 8-SOP ADV |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.665 | $0.602 | $0.484 | $0.376 | $0.312 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TPH5R906NH,L1Q | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N CH 60V 28A 8-SOP ADV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66398 pcs | Data sheet | TPH5R906NH |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 300µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-SOP Advance (5x5) | Series | U-MOSVIII-H |
| Rds On (Max) @ Id, Vgs | 5.9 mOhm @ 14A, 10V | Power Dissipation (Max) | 1.6W (Ta), 57W (Tc) |
| Packaging | Original-Reel® | Package / Case | 8-PowerVDFN |
| Other Names | TPH5R906NHL1QDKR | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 3100pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 28A (Ta) 1.6W (Ta), 57W (Tc) Surface Mount 8-SOP Advance (5x5) |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta) |
