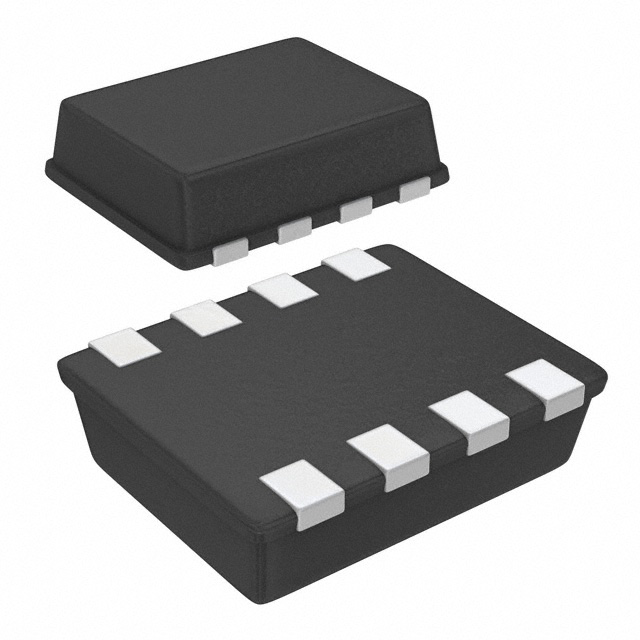

TPCP8005-H(TE85L,F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPCP8005-H(TE85L,F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPCP8005-H(TE85L,F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPCP8005-H(TE85L,F |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 30V 11A PS-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPCP8005-H(TE85L,F | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 30V 11A PS-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4585 pcs | Data sheet | Mosfets Prod GuideTPCP8005-H |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PS-8 (2.9x2.4) | Series | U-MOSV-H |
| Rds On (Max) @ Id, Vgs | 12.9 mOhm @ 5.5A, 10V | Power Dissipation (Max) | 840mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD, Flat Lead |
| Other Names | TPCP8005-HTE85LFTR | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2150pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 11A (Ta) 840mW (Ta) Surface Mount PS-8 (2.9x2.4) |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
