TPCA8051-H(T2L1,VM

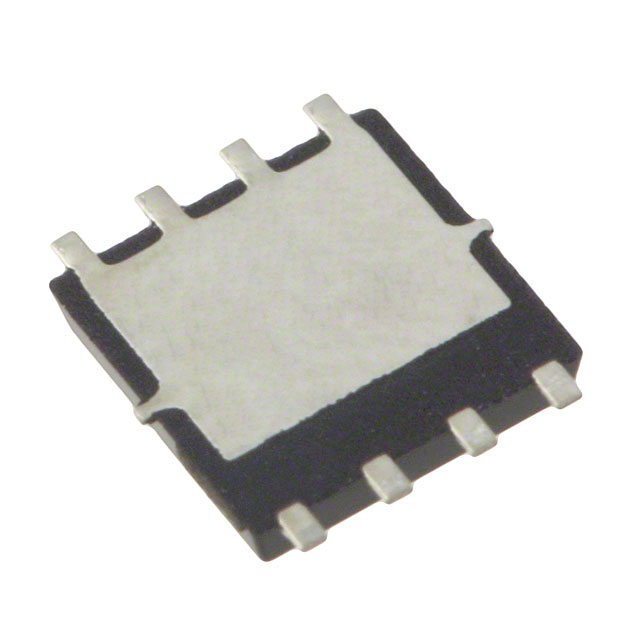

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TPCA8051-H(T2L1,VM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TPCA8051-H(T2L1,VM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TPCA8051-H(T2L1,VM |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 80V 28A 8-SOP ADV |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.544 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TPCA8051-H(T2L1,VM | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 80V 28A 8-SOP ADV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69018 pcs | Data sheet | TPCA8051-HMosfets Prod Guide |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.3V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-SOP Advance (5x5) | Series | U-MOSVI-H |
| Rds On (Max) @ Id, Vgs | 9.4 mOhm @ 14A, 10V | Power Dissipation (Max) | 1.6W (Ta), 45W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | TPCA8051-H(T2L1VMTR TPCA8051-H(TE12L,Q TPCA8051-HTE12LQTR TPCA8051-HTE12LQTR-ND TPCA8051HT2L1VM |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 7540pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 91nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 80V | Detailed Description | N-Channel 80V 28A (Ta) 1.6W (Ta), 45W (Tc) Surface Mount 8-SOP Advance (5x5) |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta) |
