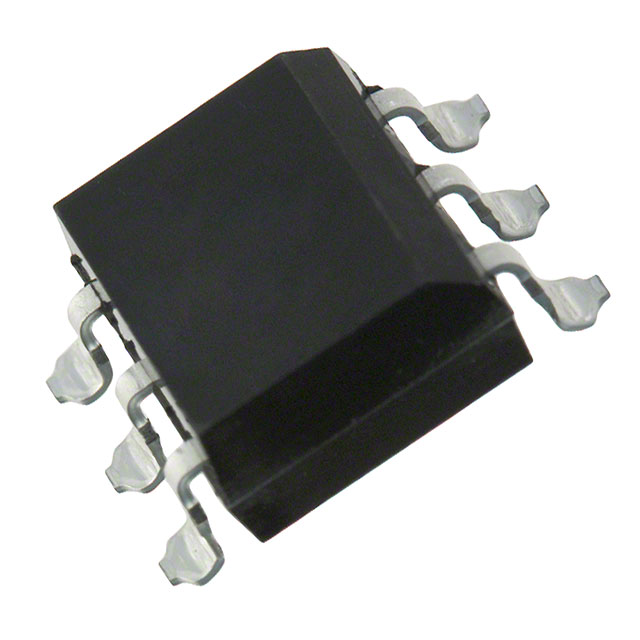

TLP748J(TP1,F)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP748J(TP1,F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP748J(TP1,F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP748J(TP1,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISOLATOR 4KV SCR 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.722 | $0.588 | $0.452 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.407 | $0.362 | $0.307 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP748J(TP1,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISOLATOR 4KV SCR 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68959 pcs | Data sheet | TLP748J |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 600V | Voltage - Isolation | 4000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Turn On Time | 15µs |
| Supplier Device Package | 6-SMD | Static dV/dt (Min) | 5V/µs |
| Series | - | Packaging | Original-Reel® |
| Package / Case | 6-SMD, Gull Wing | Output Type | SCR |
| Other Names | TLP748JTP1FDKR | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator SCR Output 4000Vrms 1 Channel 6-SMD | Current - On State (It (RMS)) (Max) | 150mA |
| Current - LED Trigger (Ift) (Max) | 10mA | Current - Hold (Ih) | 1mA |
| Current - DC Forward (If) (Max) | 50mA | Approvals | BSI, SEMKO, UR |
