Home > Products > Isolators > Isolators - Gate Drivers > TLP5771(TP,E

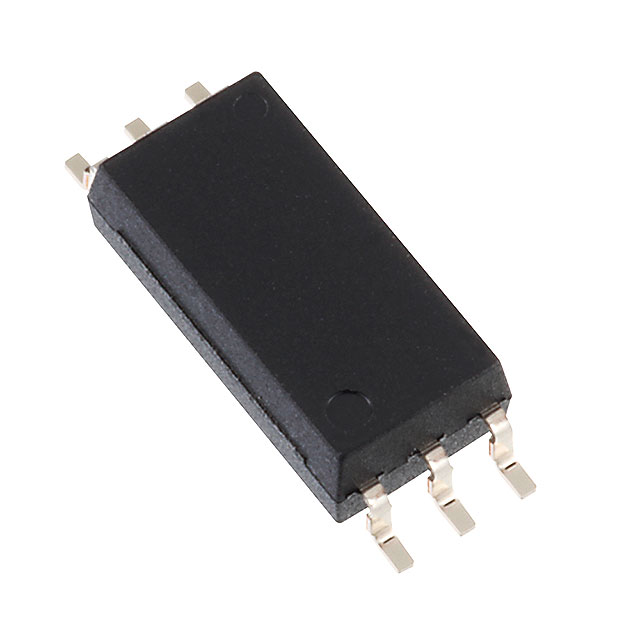

TLP5771(TP,E

TLP5771(TP,E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP5771(TP,E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number TLP5771(TP,E
Manufacturer Toshiba Semiconductor and Storage
Description OPTOISO 5KV 1CH GATE DRIVER 6SO
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 78557 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs
$1.012$0.897$0.666
100 pcs250 pcs500 pcs
$0.579$0.521$0.463

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$1.012

Product parameter

Part Number TLP5771(TP,E Manufacturer Toshiba Semiconductor and Storage
Description OPTOISO 5KV 1CH GATE DRIVER 6SO Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 78557 pcs Data sheet TLP5771
Category Isolators Voltage - Supply 10 V ~ 30 V
Voltage - Isolation 5000Vrms Voltage - Forward (Vf) (Typ) 1.65V
Technology Optical Coupling Supplier Device Package 6-SO
Series - Rise / Fall Time (Typ) 15ns, 8ns
Pulse Width Distortion (Max) 50ns Propagation Delay tpLH / tpHL (Max) 150ns, 150ns
Packaging Cut Tape (CT) Package / Case 6-SOIC (0.295", 7.50mm Width)
Other Names TLP5771(TPECT Operating Temperature -40°C ~ 110°C
Number of Channels 1 Mounting Type Surface Mount
Lead Free Status / RoHS Status Lead free / RoHS Compliant Detailed Description 1A Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SO
Current - Peak Output 1A Current - Output High, Low 1A, 1A
Current - DC Forward (If) (Max) 8mA Common Mode Transient Immunity (Min) 35kV/µs
Approvals CQC, cUR, UR, VDE
