TLP3083(TP1,F

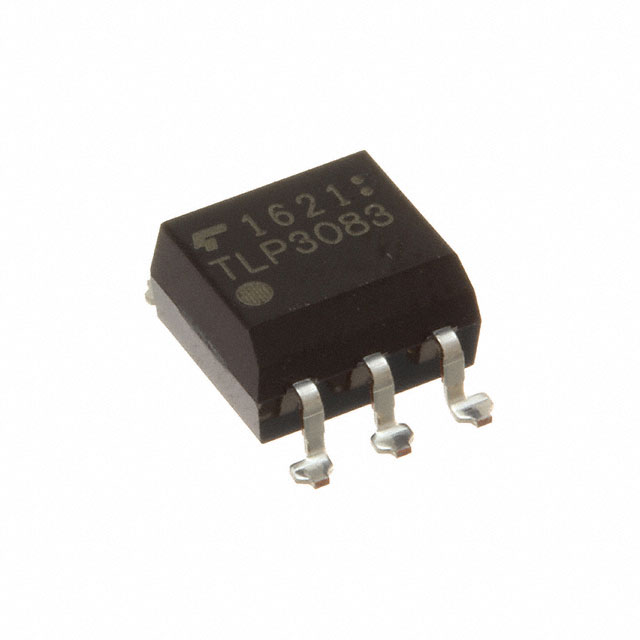

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP3083(TP1,F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP3083(TP1,F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP3083(TP1,F |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISO 5KV TRIAC 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.587 | $0.477 | $0.367 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.33 | $0.293 | $0.249 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP3083(TP1,F | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 5KV TRIAC 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91684 pcs | Data sheet | TLP3083,F |
| Category | Isolators | Zero Crossing Circuit | Yes |
| Voltage - Off State | 800V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Turn On Time | - |
| Supplier Device Package | 6-SMD | Static dV/dt (Min) | 2kV/µs (Typ) |
| Series | - | Packaging | Original-Reel® |
| Package / Case | 6-SMD (5 Leads), Gull Wing | Output Type | Triac |
| Other Names | TLP3083(TP1FDKR | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD | Current - On State (It (RMS)) (Max) | 100mA |
| Current - LED Trigger (Ift) (Max) | 5mA | Current - Hold (Ih) | 600µA (Typ) |
| Current - DC Forward (If) (Max) | 50mA | Approvals | CQC, CSA, cUL, UL |
