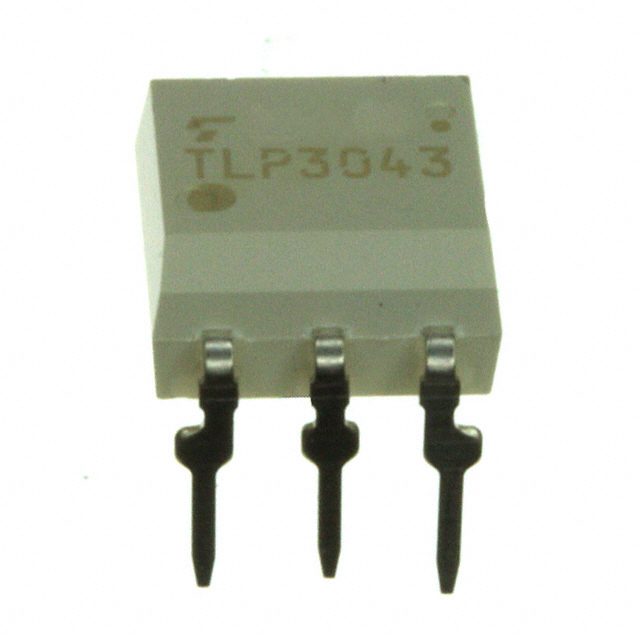

TLP3043(S,C,F)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP3043(S,C,F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP3043(S,C,F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP3043(S,C,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISOLATOR 5KV TRIAC 6DIP 5L |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $0.477 | $0.388 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP3043(S,C,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRIAC 6DIP 5L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88419 pcs | Data sheet | TLP3041(S), 42(S), 43(S) |
| Category | Isolators | Zero Crossing Circuit | Yes |
| Voltage - Off State | 400V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Turn On Time | - |
| Supplier Device Package | 6-DIP (Cut), 5 Lead | Static dV/dt (Min) | 200V/µs |
| Series | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads | Output Type | Triac |
| Other Names | TLP3043(S,C,F,T) TLP3043(SCF) TLP3043SCF TLP3043SCFT TLP3043SCFT-ND TLP3043SF TLP3043SF-ND |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP (Cut), 5 Lead | Current - On State (It (RMS)) (Max) | 100mA |
| Current - LED Trigger (Ift) (Max) | 5mA | Current - Hold (Ih) | 600µA (Typ) |
| Current - DC Forward (If) (Max) | 50mA | Approvals | BSI, SEMKO, UR |
