Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > TLP292-4(GBTPR,E

TLP292-4(GBTPR,E

TLP292-4(GBTPR,E

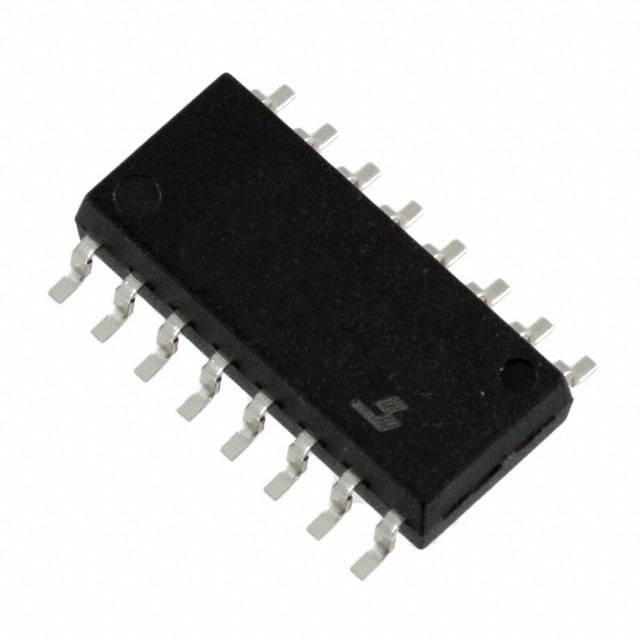

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP292-4(GBTPR,E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number TLP292-4(GBTPR,E
Manufacturer Toshiba Semiconductor and Storage
Description OPTOISOLATOR 3.75KV TRANS SO16
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 113511 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs25 pcs100 pcs
$0.566$0.459$0.353$0.318
250 pcs500 pcs1000 pcs
$0.283$0.24$0.198

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.566

Product parameter

Part Number TLP292-4(GBTPR,E Manufacturer Toshiba Semiconductor and Storage
Description OPTOISOLATOR 3.75KV TRANS SO16 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 113511 pcs Data sheet TLP292-4
Category Isolators Voltage - Output (Max) 80V
Voltage - Isolation 3750Vrms Voltage - Forward (Vf) (Typ) 1.25V
Vce Saturation (Max) 300mV Turn On / Turn Off Time (Typ) 3µs, 3µs
Supplier Device Package 16-SO Series -
Rise / Fall Time (Typ) 2µs, 3µs Packaging Original-Reel®
Package / Case 16-SOIC (0.179", 4.55mm Width) Output Type Transistor
Other Names TLP292-4(GBTPREDKR Operating Temperature -55°C ~ 125°C
Number of Channels 4 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Type AC, DC Detailed Description Optoisolator Transistor Output 3750Vrms 4 Channel 16-SO
Current Transfer Ratio (Min) 100% @ 5mA Current Transfer Ratio (Max) 600% @ 5mA
Current - Output / Channel 50mA Current - DC Forward (If) (Max) 50mA
