TLP291(E)

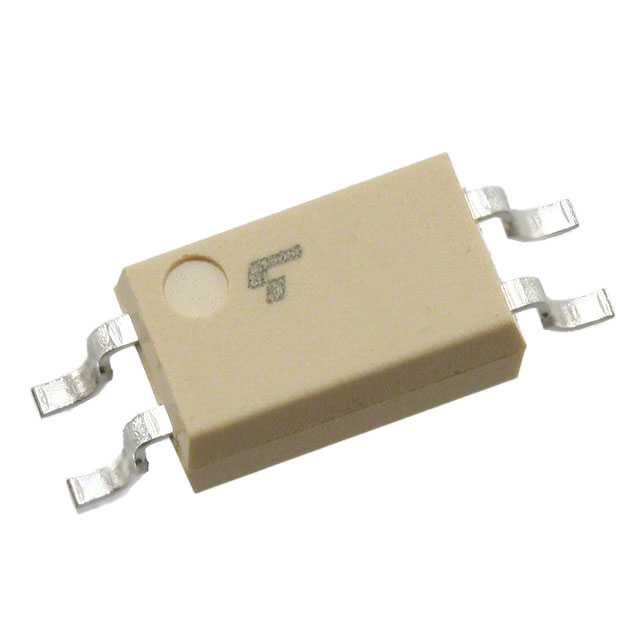

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP291(E) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP291(E) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP291(E) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISOLATOR 3.75KV TRANS 4-SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP291(E) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISOLATOR 3.75KV TRANS 4-SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5569 pcs | Data sheet | TLP291 |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.25V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | 7µs, 7µs |
| Supplier Device Package | 4-SO | Series | - |
| Rise / Fall Time (Typ) | 4µs, 7µs | Packaging | Bulk |
| Package / Case | 4-SOIC (0.179", 4.55mm Width) | Output Type | Transistor |
| Other Names | TLP291(E(O TLP291(E(T TLP291E |
Operating Temperature | -55°C ~ 110°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 3750Vrms 1 Channel 4-SO |
| Current Transfer Ratio (Min) | 50% @ 5mA | Current Transfer Ratio (Max) | 400% @ 5mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
