TLP2366(V4,E

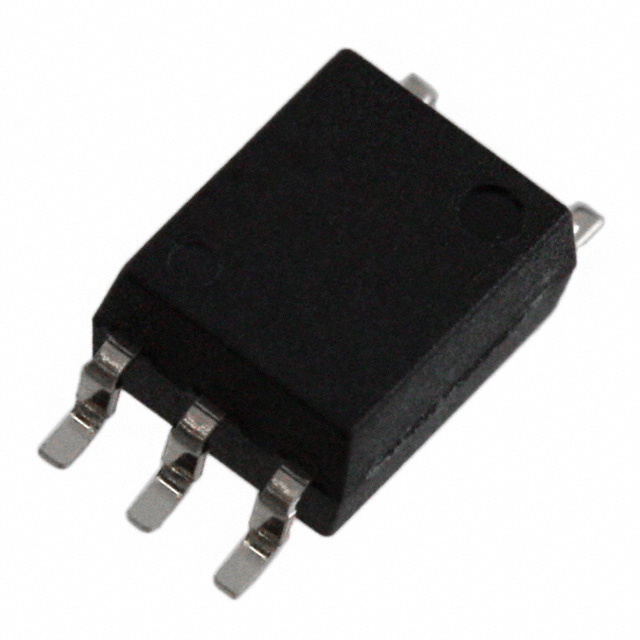

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP2366(V4,E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP2366(V4,E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP2366(V4,E |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISO 3.75KV PSH PULL SO6-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 125 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.808 | $0.716 | $0.531 | $0.462 | $0.416 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.37 | $0.318 | $0.30 | $0.289 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP2366(V4,E | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 3.75KV PSH PULL SO6-5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83113 pcs | Data sheet | TLP2366 |
| Category | Isolators | Voltage - Supply | 2.7 V ~ 5.5 V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.61V |
| Supplier Device Package | 6-SO, 5 Lead | Series | - |
| Rise / Fall Time (Typ) | 15ns, 15ns | Propagation Delay tpLH / tpHL (Max) | 40ns, 40ns |
| Packaging | Tube | Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Output Type | Push-Pull, Totem Pole | Other Names | TLP2366(V4,E(T TLP2366(V4E TLP2366V4E |
| Operating Temperature | -40°C ~ 125°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 20MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 6-SO, 5 Lead |
| Data Rate | 20MBd | Current - Output / Channel | 10mA |
| Current - DC Forward (If) (Max) | 25mA | Common Mode Transient Immunity (Min) | 20kV/µs |
