TLP2168(TP,F)

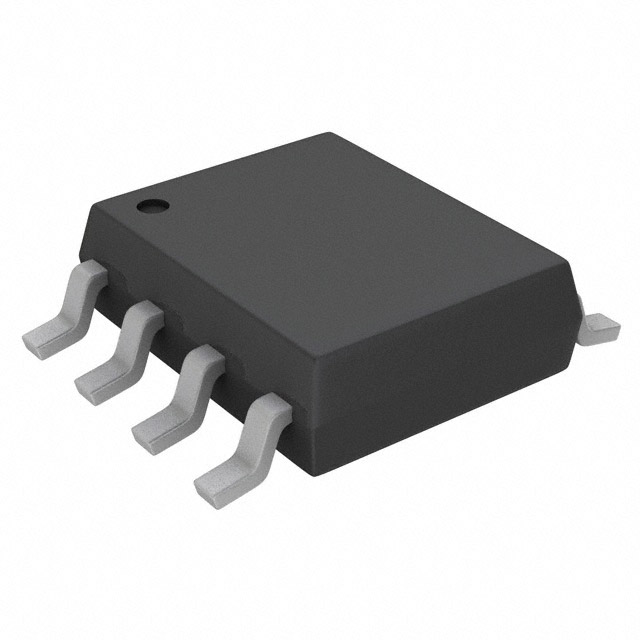

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP2168(TP,F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP2168(TP,F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP2168(TP,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISO 2.5KV 2CH OPN COL 8SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP2168(TP,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISO 2.5KV 2CH OPN COL 8SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5605 pcs | Data sheet | TLP2168 |
| Category | Isolators | Voltage - Supply | 2.7 V ~ 5.5 V |
| Voltage - Isolation | 2500Vrms | Voltage - Forward (Vf) (Typ) | 1.57V |
| Supplier Device Package | 8-SO | Series | - |
| Rise / Fall Time (Typ) | 30ns, 30ns | Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Packaging | Original-Reel® | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Output Type | Open Collector | Other Names | TLP2168(TPF)DKR |
| Operating Temperature | -40°C ~ 125°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 2/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 20MBd Open Collector 2500Vrms 2 Channel 15kV/µs CMTI 8-SO |
| Data Rate | 20MBd | Current - Output / Channel | 25mA |
| Current - DC Forward (If) (Max) | 25mA | Common Mode Transient Immunity (Min) | 15kV/µs |
