TLP160J(TPR,U,C,F)

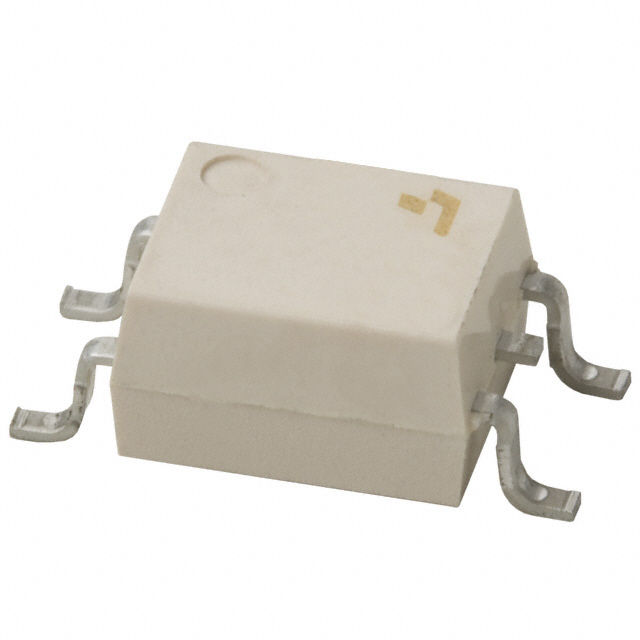

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLP160J(TPR,U,C,F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLP160J(TPR,U,C,F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLP160J(TPR,U,C,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.439 | $0.357 | $0.274 | $0.247 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.22 | $0.187 | $0.154 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLP160J(TPR,U,C,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | OPTOISOLATOR 2.5KV TRIAC 6MFSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147658 pcs | Data sheet | TLP160J |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 600V | Voltage - Isolation | 2500Vrms |
| Voltage - Forward (Vf) (Typ) | 1.15V | Turn On Time | 30µs |
| Supplier Device Package | 6-MFSOP, 4 Lead | Static dV/dt (Min) | 500V/µs |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Output Type | Triac |
| Other Names | TLP160JFCT | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator Triac Output 2500Vrms 1 Channel 6-MFSOP, 4 Lead | Current - On State (It (RMS)) (Max) | 70mA |
| Current - LED Trigger (Ift) (Max) | 10mA | Current - Hold (Ih) | 1mA (Typ) |
| Current - DC Forward (If) (Max) | 50mA | Approvals | UR |
