TK9P65W,RQ

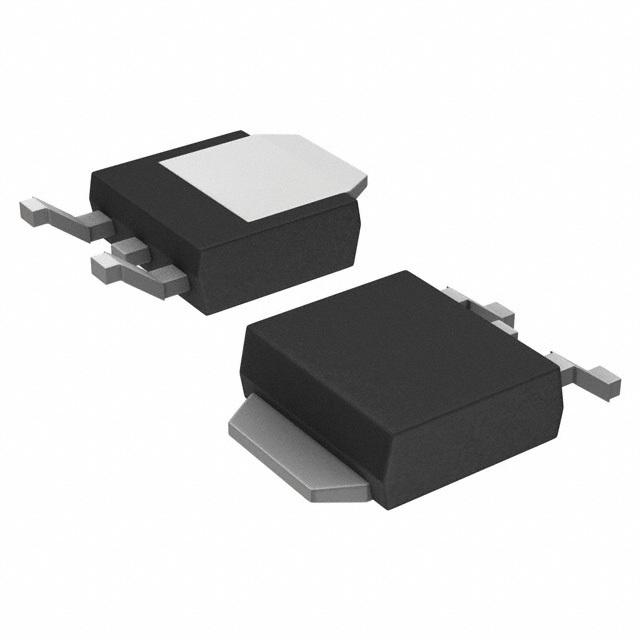

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TK9P65W,RQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TK9P65W,RQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TK9P65W,RQ |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 650V 9.3A DPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.316 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TK9P65W,RQ | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 650V 9.3A DPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67576 pcs | Data sheet | TK9P65W |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.5V @ 350µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DPAK | Series | DTMOSIV |
| Rds On (Max) @ Id, Vgs | 560 mOhm @ 4.6A, 10V | Power Dissipation (Max) | 80W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Other Names | TK9P65W,RQ(S TK9P65WRQTR |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 700pF @ 300V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 650V | Detailed Description | N-Channel 650V 9.3A (Ta) 80W (Tc) Surface Mount DPAK |
| Current - Continuous Drain (Id) @ 25°C | 9.3A (Ta) |
