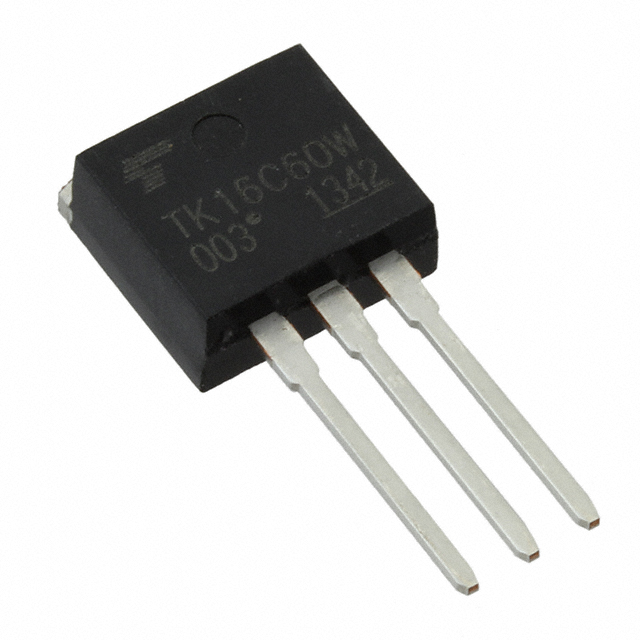

TK16C60W,S1VQ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TK16C60W,S1VQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TK16C60W,S1VQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TK16C60W,S1VQ |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 600V 15.8A I2PAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.944 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TK16C60W,S1VQ | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 600V 15.8A I2PAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19280 pcs | Data sheet | TK16C60W |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3.7V @ 790µA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | I2PAK | Series | DTMOSIV |
| Rds On (Max) @ Id, Vgs | 190 mOhm @ 7.9A, 10V | Power Dissipation (Max) | 130W (Tc) |
| Packaging | Tube | Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Other Names | TK16C60W,S1VQ(S TK16C60WS1VQ |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1350pF @ 300V |
| Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Drain to Source Voltage (Vdss) | 600V | Detailed Description | N-Channel 600V 15.8A (Ta) 130W (Tc) Through Hole I2PAK |
| Current - Continuous Drain (Id) @ 25°C | 15.8A (Ta) |
