TCR5AM09,LF

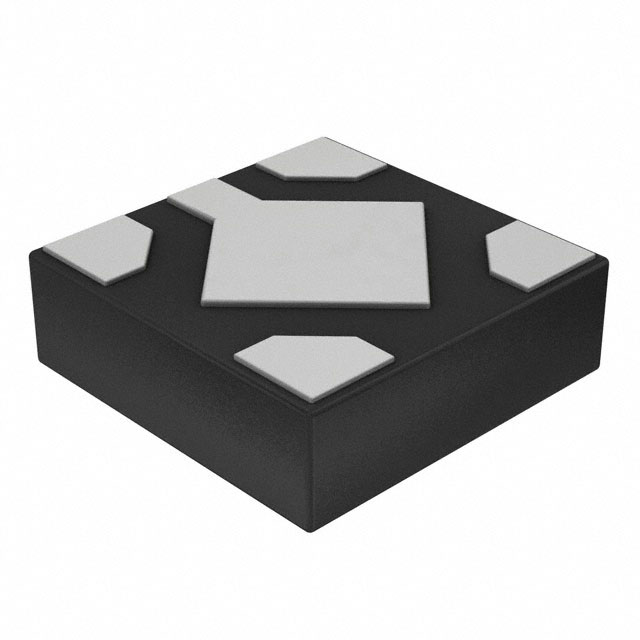

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCR5AM09,LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCR5AM09,LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCR5AM09,LF |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC REG LINEAR 0.9V 500MA 5DFNB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 25000 pcs | 50000 pcs | |
|---|---|---|---|---|---|
| $0.048 | $0.045 | $0.042 | $0.041 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCR5AM09,LF | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC REG LINEAR 0.9V 500MA 5DFNB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 538623 pcs | Data sheet | TCR5AM Series |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.23V @ 500mA |
| Voltage - Output (Min/Fixed) | 0.9V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 5.5V | Supplier Device Package | 5-DFNB (1.2x1.2) |
| Series | - | Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Packaging | Tape & Reel (TR) | Package / Case | 4-XDFN Exposed Pad |
| PSRR | 70dB ~ 40dB (1kHz ~ 10Hz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | TCR5AM09,LF(S TCR5AM09LF TCR5AM09LFTR |
| Operating Temperature | -40°C ~ 85°C (TJ) | Number of Regulators | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 0.9V 500mA 5-DFNB (1.2x1.2) | Current - Supply (Max) | 68µA |
| Current - Quiescent (Iq) | 55µA | Current - Output | 500mA |
| Control Features | Enable |
