TCR15AG11,LF

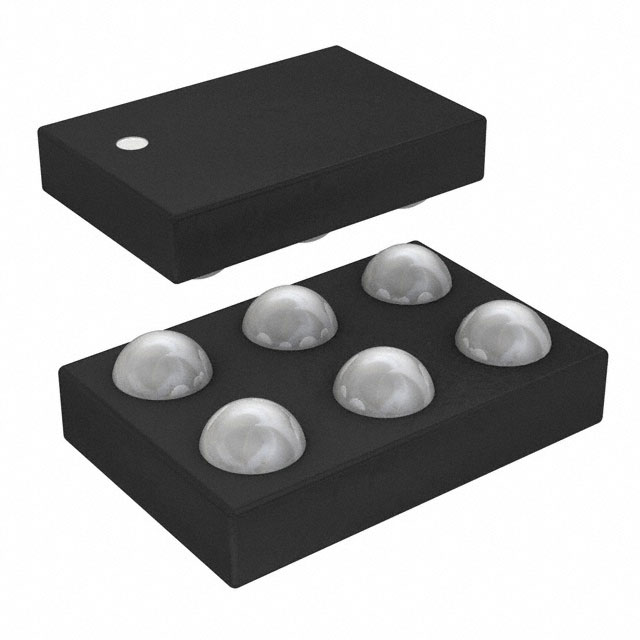

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCR15AG11,LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCR15AG11,LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCR15AG11,LF |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC REG LINEAR 1.1V 1.5A 6WCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 25000 pcs | ||
|---|---|---|---|---|---|
| $0.079 | $0.076 | $0.073 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCR15AG11,LF | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC REG LINEAR 1.1V 1.5A 6WCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 316573 pcs | Data sheet | TCR15AG Series |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.24V @ 1.5A |
| Voltage - Output (Min/Fixed) | 1.1V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 6V | Supplier Device Package | 6-WCSP (1.2x0.80) |
| Series | - | Protection Features | Current Limit, Thermal Shutdown, UVLO |
| Packaging | Tape & Reel (TR) | Package / Case | 6-XFBGA, WLCSP |
| PSRR | 95dB ~ 60dB (1kHz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | TCR15AG11,LF(S TCR15AG11,LFTR TCR15AG11LF TCR15AG11LF(S TCR15AG11LFTR |
| Operating Temperature | -40°C ~ 85°C (TJ) | Number of Regulators | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC 1 Output 1.5A 6-WCSP (1.2x0.80) | Current - Quiescent (Iq) | 40µA |
| Current - Output | 1.5A | Control Features | Enable |
