TB67S149FG,EL

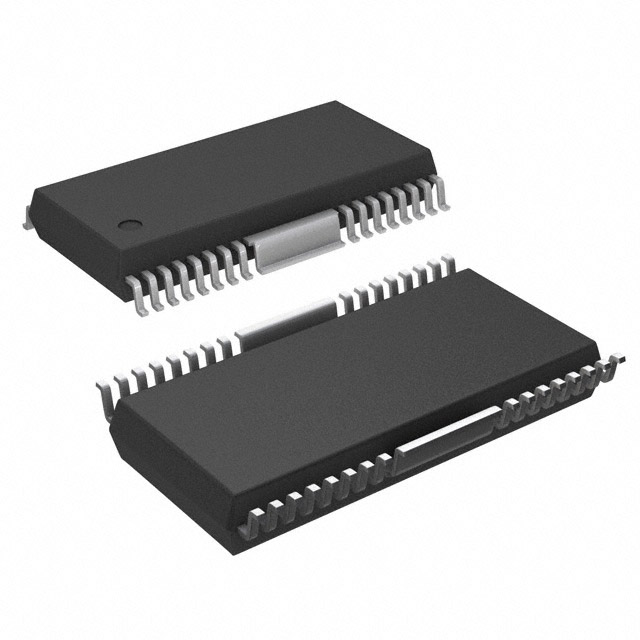

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TB67S149FG,EL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TB67S149FG,EL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TB67S149FG,EL |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | 2 PHASE UNIPOLAR STEPPING MOTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.686 | $0.651 | $0.627 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TB67S149FG,EL | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | 2 PHASE UNIPOLAR STEPPING MOTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48565 pcs | Data sheet | TB67S149FG |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.75 V ~ 5.25 V |
| Voltage - Load | 10 V ~ 40 V | Technology | Power MOSFET |
| Supplier Device Package | 28-HSSOP | Step Resolution | 1 ~ 1/32 |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Output Configuration | Half Bridge (2) |
| Other Names | TB67S149FG(O,EL) TB67S149FG(OEL) TB67S149FGEL TB67S149FGELTR |
Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Motor Type - Stepper | Unipolar |
| Motor Type - AC, DC | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Unipolar Motor Driver Power MOSFET Parallel 28-HSSOP |
| Current - Output | 3A | Applications | General Purpose |
