TB67H302HG

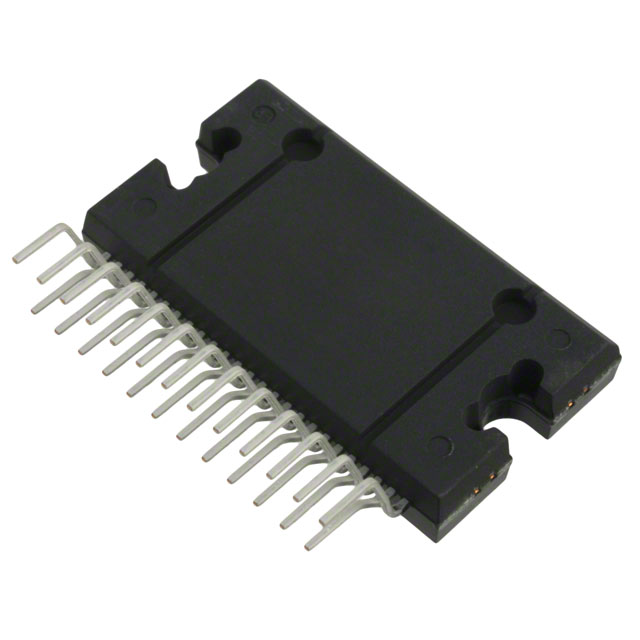

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TB67H302HG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TB67H302HG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TB67H302HG |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR DRIVER PAR 25HZIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $3.123 | $2.81 | $2.561 | $2.311 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.123 | $1.936 | $1.686 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TB67H302HG | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 25HZIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22366 pcs | Data sheet | TB67H302HG |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 8 V ~ 42 V |
| Voltage - Load | 8 V ~ 42 V | Technology | Power MOSFET |
| Supplier Device Package | 25-HZIP | Step Resolution | - |
| Series | - | Packaging | Tube |
| Package / Case | 25-SIP Formed Leads | Output Configuration | Half Bridge (4) |
| Other Names | TB67H302HG(O) | Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Chassis Mount | Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Parallel, PWM | Function | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description | Motor Driver Power MOSFET Parallel, PWM 25-HZIP | Current - Output | 4.5A |
| Applications | General Purpose |
