TB62209FG,EL

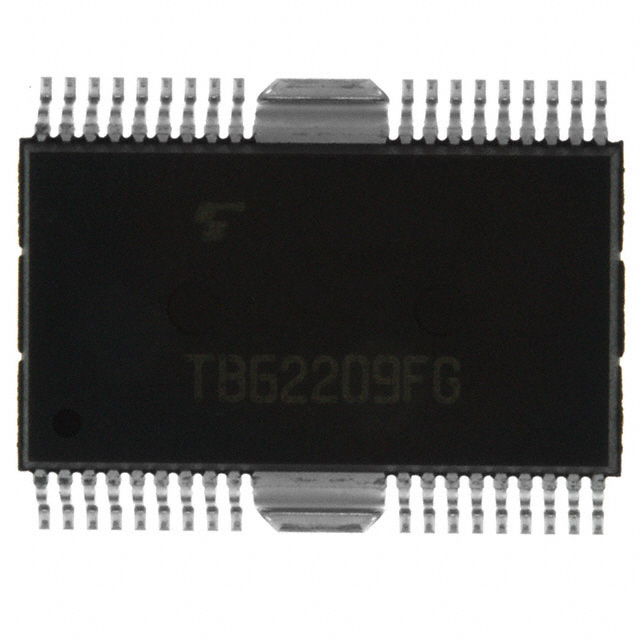

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TB62209FG,EL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TB62209FG,EL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TB62209FG,EL |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR DRIVER PAR 36HSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TB62209FG,EL | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 36HSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5863 pcs | Data sheet | TB62209FG |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Load | 13 V ~ 34 V | Technology | DMOS |
| Supplier Device Package | 36-HSOP | Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 36-BSSOP (0.346", 8.80mm Width) + 2 Heat Tabs | Output Configuration | Half Bridge (4) |
| Other Names | TB62209FG (O,EL) TB62209FG(EL) TB62209FG(O,EL) TB62209FGELTR TB62209FGOEL TB62209FGTR TB62209FGTR-ND |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Bipolar Motor Driver DMOS Parallel 36-HSOP |
| Current - Output | 1.5A | Base Part Number | TB62209 |
| Applications | General Purpose |
