SSM6L13TU(T5L,F,T)

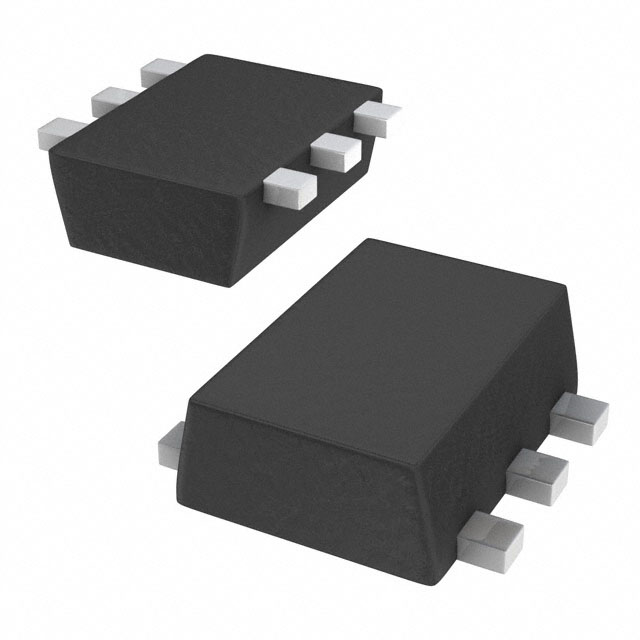

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM6L13TU(T5L,F,T) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM6L13TU(T5L,F,T) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM6L13TU(T5L,F,T) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N/P-CH 20V 800MA UF6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM6L13TU(T5L,F,T) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N/P-CH 20V 800MA UF6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6004 pcs | Data sheet | SSM6L13TU |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 1mA |
| Supplier Device Package | UF6 | Series | - |
| Rds On (Max) @ Id, Vgs | 143 mOhm @ 600mA, 4V, 234 mOhm @ 600mA, 4V | Power - Max | 500mW |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, Flat Leads |
| Other Names | SSM6L13TU(T5L,F,T)-ND SSM6L13TU(T5LFT) SSM6L13TU(T5LFT)TR SSM6L13TU(T5LFT)TR-ND SSM6L13TUT5LFT |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 268pF @ 10V, 250pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | - | FET Type | N and P-Channel |
| FET Feature | Logic Level Gate, 1.8V Drive | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array N and P-Channel 20V 800mA (Ta) 500mW Surface Mount UF6 | Current - Continuous Drain (Id) @ 25°C | 800mA (Ta) |
