SSM3K59CTB,L3F

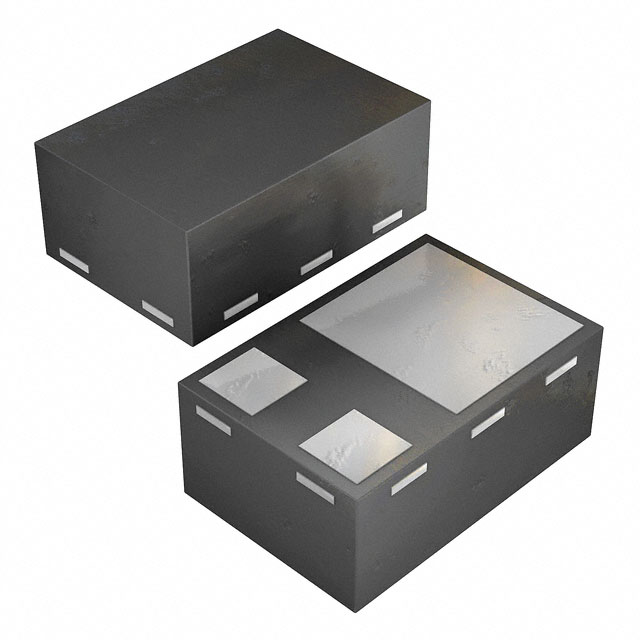

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM3K59CTB,L3F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM3K59CTB,L3F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM3K59CTB,L3F |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 40V 2A CST3B |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.041 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM3K59CTB,L3F | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 40V 2A CST3B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 554770 pcs | Data sheet | SSM3K59CTB |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.2V @ 1mA |
| Vgs (Max) | ±12V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | CST3B | Series | U-MOSVII-H |
| Rds On (Max) @ Id, Vgs | 215 mOhm @ 1A, 8V | Power Dissipation (Max) | 1W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 3-SMD, No Lead |
| Other Names | SSM3K59CTB,L3F(A SSM3K59CTBL3FTR |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 130pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 1.1nC @ 4.2V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 8V |
| Drain to Source Voltage (Vdss) | 40V | Detailed Description | N-Channel 40V 2A (Ta) 1W (Ta) Surface Mount CST3B |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
