SSM3K303T(TE85L,F)

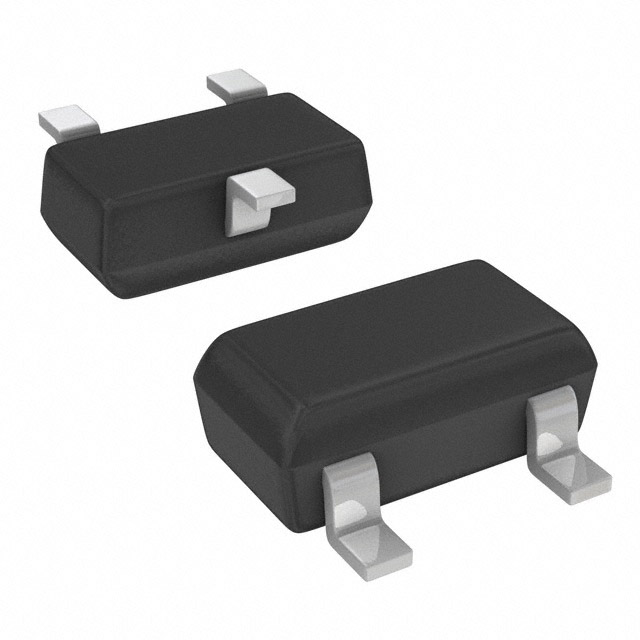

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM3K303T(TE85L,F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM3K303T(TE85L,F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM3K303T(TE85L,F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N-CH 30V 2.9A TSM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM3K303T(TE85L,F) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET N-CH 30V 2.9A TSM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3981 pcs | Data sheet | Mosfets Prod GuideSSM3K303T |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TSM | Series | π-MOSVII |
| Rds On (Max) @ Id, Vgs | 83 mOhm @ 1.5A, 10V | Power Dissipation (Max) | 700mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | SSM3K303T(TE85LF)CT | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 180pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 3.3nC @ 4V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 2.9A (Ta) 700mW (Ta) Surface Mount TSM |
| Current - Continuous Drain (Id) @ 25°C | 2.9A (Ta) |
