SSM3J129TU(TE85L)

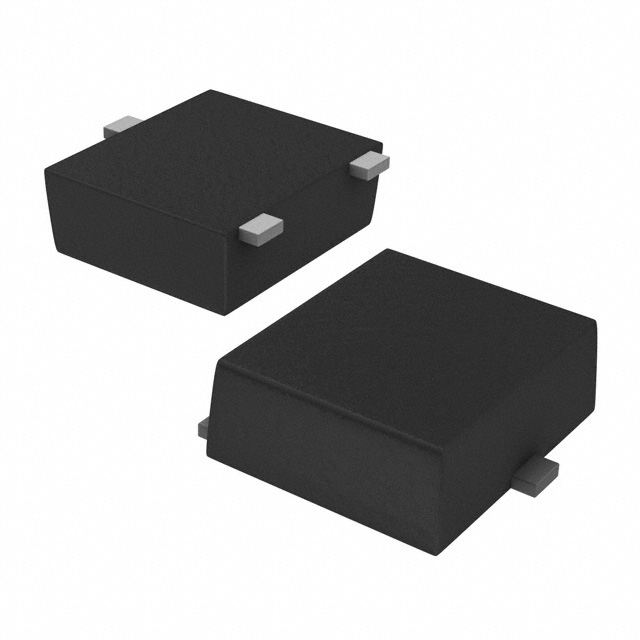

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM3J129TU(TE85L) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM3J129TU(TE85L) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM3J129TU(TE85L) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET P-CH 20V 4.6A UFM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM3J129TU(TE85L) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET P-CH 20V 4.6A UFM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4135 pcs | Data sheet | SSM3J129TUMosfets Prod Guide |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 1mA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | UFM | Series | U-MOSV |
| Rds On (Max) @ Id, Vgs | 46 mOhm @ 3A, 4.5V | Power Dissipation (Max) | 500mW (Ta) |
| Packaging | Original-Reel® | Package / Case | 3-SMD, Flat Leads |
| Other Names | SSM3J129TU(TE85L)DKR | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 640pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 8.1nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | P-Channel 20V 4.6A (Ta) 500mW (Ta) Surface Mount UFM |
| Current - Continuous Drain (Id) @ 25°C | 4.6A (Ta) |
