CMF05(TE12L,Q,M)

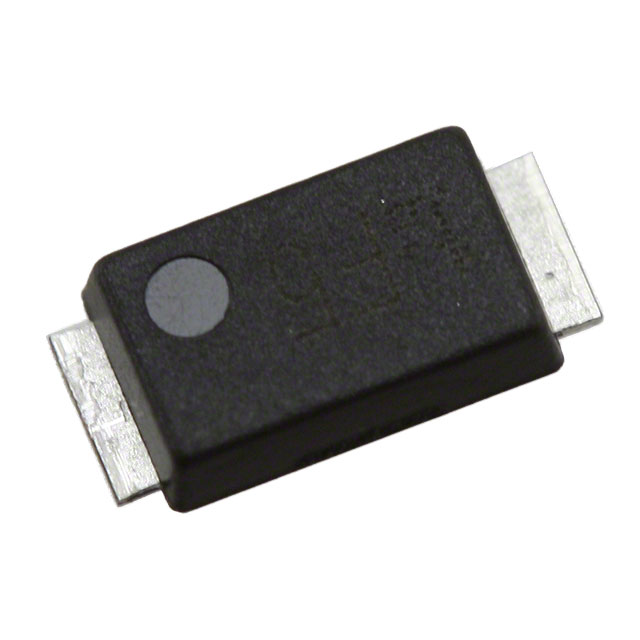

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMF05(TE12L,Q,M) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMF05(TE12L,Q,M) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMF05(TE12L,Q,M) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | DIODE GEN PURP 1KV 500MA MFLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.159 | $0.135 | $0.101 | $0.074 | $0.057 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CMF05(TE12L,Q,M) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | DIODE GEN PURP 1KV 500MA MFLAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 368141 pcs | Data sheet | Small and Medium Diodes Catalog |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 2.7V @ 500mA |
| Voltage - DC Reverse (Vr) (Max) | 1000V | Supplier Device Package | M-FLAT (2.4x3.8) |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 100ns | Packaging | Original-Reel® |
| Package / Case | SOD-128 | Other Names | CMF05(TE12LQM)DKR |
| Operating Temperature - Junction | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 1000V 500mA Surface Mount M-FLAT (2.4x3.8) | Current - Reverse Leakage @ Vr | 50µA @ 800V |
| Current - Average Rectified (Io) | 500mA | Capacitance @ Vr, F | - |
| Base Part Number | CMF05 |
