PCS.06.A

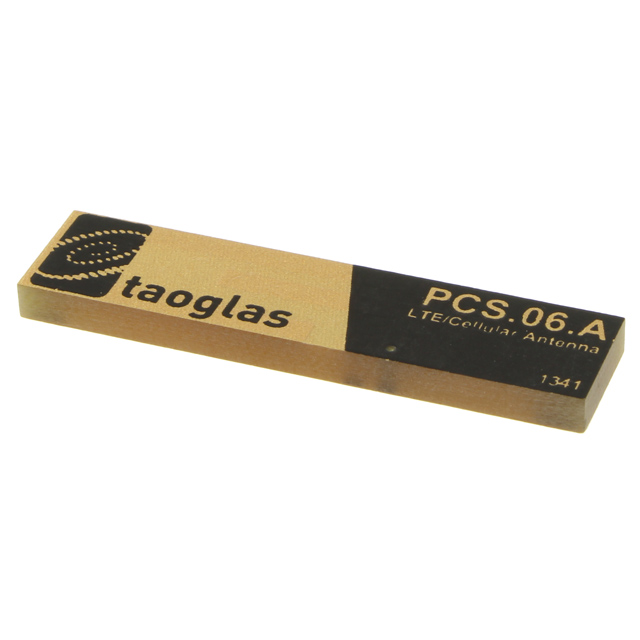

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCS.06.A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCS.06.A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCS.06.A |
|---|---|
| Manufacturer | Taoglas |
| Description | RF ANT 700MHZ/850MHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $2.983 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCS.06.A | Manufacturer | Taoglas |
|---|---|---|---|
| Description | RF ANT 700MHZ/850MHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11067 pcs | Data sheet | PCS.06.A Specification |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | Havok |
| Return Loss | -7dB, -6dB | Power - Max | 5W |
| Packaging | Tape & Reel (TR) | Other Names | 931-1296-2 |
| Number of Bands | 7 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.118" (3.00mm) | Gain | -0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | Features | - |
| Detailed Description | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA Chip RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz -0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi Solder Surface Mount | Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
| Antenna Type | Chip |
