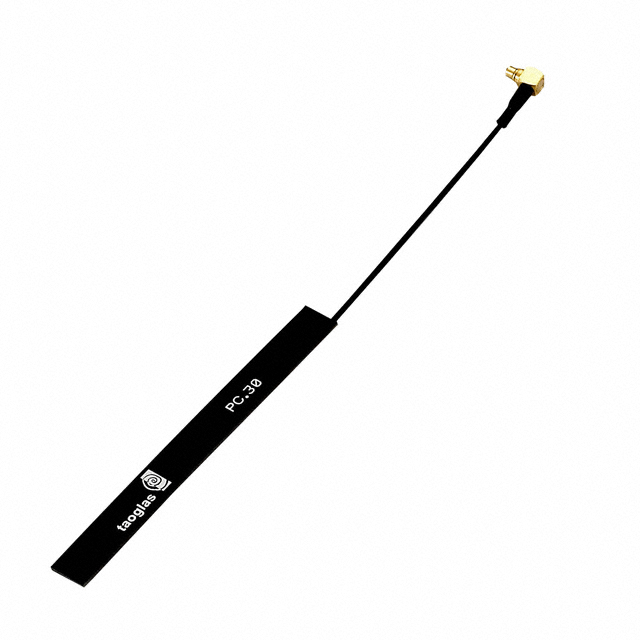

PC30.09.0100A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC30.09.0100A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC30.09.0100A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC30.09.0100A |
|---|---|
| Manufacturer | Taoglas |
| Description | RF ANT 850MHZ/900MHZ FLAT PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 500 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $4.84 | $3.312 | $3.007 | $2.826 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC30.09.0100A | Manufacturer | Taoglas |
|---|---|---|---|
| Description | RF ANT 850MHZ/900MHZ FLAT PATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12050 pcs | Data sheet | PC30.09.0100A |
| Category | RF/IF and RFID | VSWR | 2, 2.3, 0.5, 2.3, 2.2 |
| Termination | Cable (100mm) - MMCX Male | Series | - |
| Return Loss | -18dB, -18dB, -12dB, -16dB, -12dB | Power - Max | 10W |
| Packaging | Bulk | Other Names | 931-1052 PC30090100A |
| Number of Bands | 5 | Mounting Type | Bracket Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.031" (0.80mm) | Gain | 0.8dBi, -1dBi, 0dBi, 0.9dBi, 2dBi |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | Features | - |
| Detailed Description | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz CLR, DCS, GSM, PCS, UMTS Flat Patch RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 0.8dBi, -1dBi, 0dBi, 0.9dBi, 2dBi Cable (100mm) - MMCX Male Bracket Mount | Applications | CLR, DCS, GSM, PCS, UMTS |
| Antenna Type | Flat Patch |
