TS1104

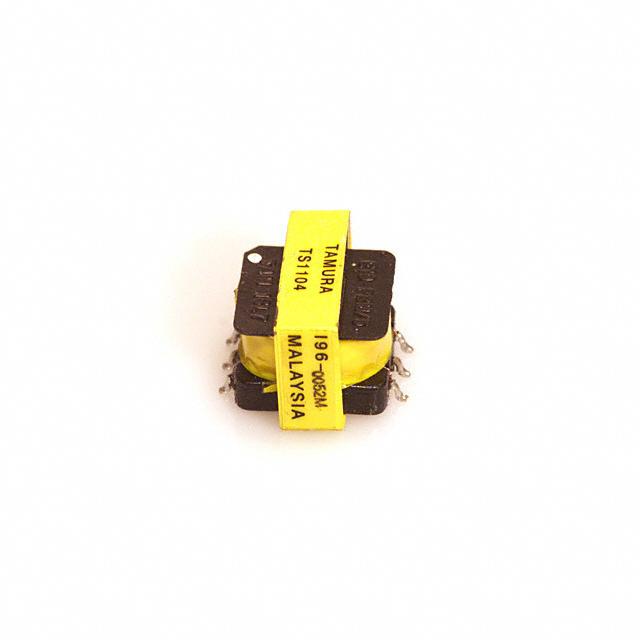

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TS1104 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TS1104 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TS1104 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSF 600 OHM SPLIT OMA -1.0 D |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1200 pcs | ||||
|---|---|---|---|---|---|
| $1.702 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TS1104 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSF 600 OHM SPLIT OMA -1.0 D | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20345 pcs | Data sheet | TS1104 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1500VRMS @ 1 Minute | Turns Ratio - Primary:Secondary | 1:1.06 |
| Transformer Type | Data/Voice Coupling | Termination Style | Gull Wing |
| Size / Dimension | 0.791" L x 0.689" W (20.09mm x 17.50mm) | Series | - |
| Return Loss | 26dB Min @ 1kHz | Power Level | -45dB ~ 7dB |
| Packaging | Tape & Reel (TR) | Other Names | MT4130 TS1104(BOX) TS1104(BULK) |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1.5dB Max @ 1kHz |
| Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.500" (12.70mm) | Frequency Response | ±0.5dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 63 Ohm |
| DC Resistance (DCR) - Primary | 46 Ohm | Approvals | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
