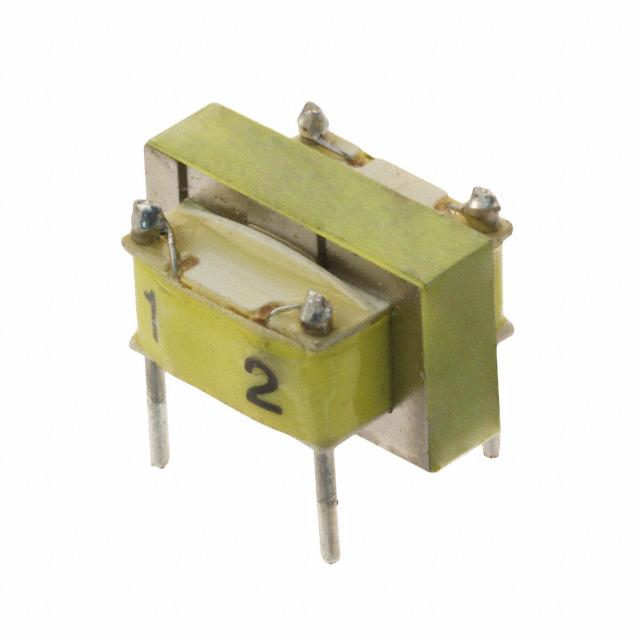

T1104
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T1104 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T1104 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T1104 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER TELE 600 OHM 0 MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.639 | $2.052 | $1.997 | $1.72 | ||
| 100 pcs | 250 pcs | 600 pcs | 1200 pcs | ||
| $1.642 | $1.609 | $1.581 | $1.553 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | T1104 | Manufacturer | Tamura |
|---|---|---|---|
| Description | TRANSFORMER TELE 600 OHM 0 MADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21101 pcs | Data sheet | T1104 |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1500VRMS @ 1 Minute | Turns Ratio - Primary:Secondary | - |
| Transformer Type | Data/Voice Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.780" L x 0.654" W (19.80mm x 16.60mm) | Series | - |
| Return Loss | 26dB Min | Power Level | -45dB ~ 7dB |
| Packaging | Tray | Other Names | MT4112 T1104(BOX) T1104(BULK) |
| Operating Temperature | - | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1dB Typ @ 1kHz |
| Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.469" (11.90mm) | Frequency Response | ±0.5dB |
| Frequency Range | 300Hz ~ 3.5kHz | DC Resistance (DCR) - Secondary | 63 Ohm |
| DC Resistance (DCR) - Primary | 46 Ohm | Approvals | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
