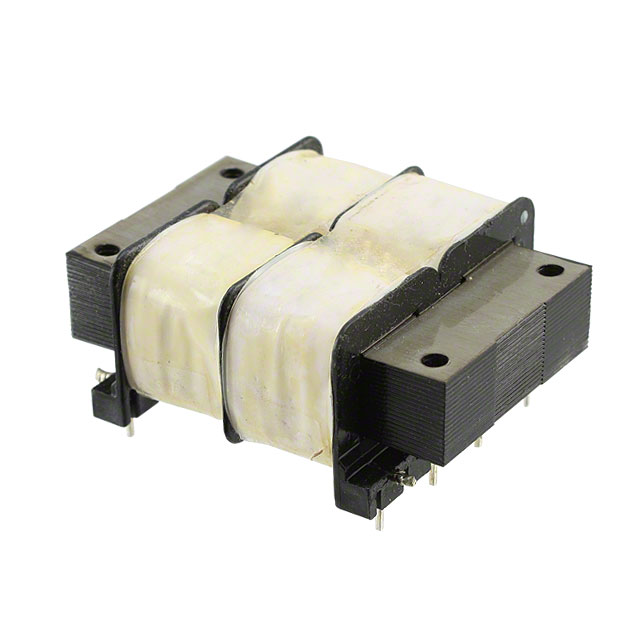

PF24-12
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PF24-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PF24-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PF24-12 |
|---|---|
| Manufacturer | Tamura |
| Description | XFRMR SEMI-TORO 24VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20 pcs | ||||
|---|---|---|---|---|---|
| $7.664 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PF24-12 | Manufacturer | Tamura |
|---|---|---|---|
| Description | XFRMR SEMI-TORO 24VA THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3892 pcs | Data sheet | PF24 Series |
| Category | Transformers | Weight | - |
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V | Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 1500Vrms | Type | Semi-Toroidal |
| Termination Style | PC Pin | Size / Dimension | 72.00mm L x 58.00mm W |
| Series | PF24 | Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual | Power - Max | 24 VA |
| Other Names | MT1108 PF24-12(BOX) PF24-12(BULK) PF2412 |
Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 31.80mm |
| Current - Output (Max) | Parallel 3.8A, Series 1.9A | Center Tap | No |
