Home > Products > Transformers > Pulse Transformers > G509

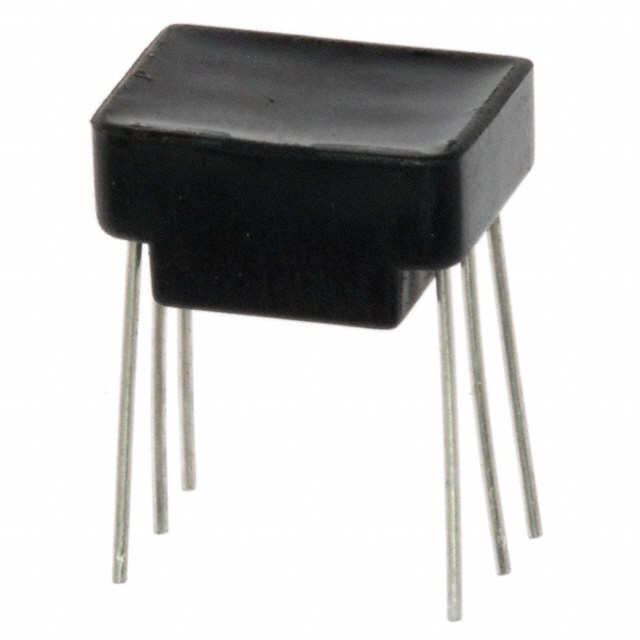

G509

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G509 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	G509
Manufacturer	Tamura
Description	TRANSFORMER 0.50MH 1CT:1CT PULSE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	550 pcs	1100 pcs
~~In Stock~~ 15634 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$4.107	$3.147	$2.666	$2.622
	$2.491	$2.465	$2.43	$2.404

Product parameter
Data sheet

Product parameter

Part Number	G509	Manufacturer	Tamura
Description	TRANSFORMER 0.50MH 1CT:1CT PULSE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15634 pcs	Data sheet	G509
Category	Transformers	Weight	-
Turns Ratio - Primary:Secondary	1CT:1CT	Transformer Type	Isolation and Data Interface (Encapsulated)
Size / Dimension	0.350" L x 0.500" W (8.90mm x 12.70mm)	Series	G5
Packaging	Bulk	Other Names	MT4208 MT9108
Operating Temperature	0°C ~ 70°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	500µH
Height - Seated (Max)	0.250" (6.35mm)	Energy Time (E.T.)	8.5V µS
