AC1020

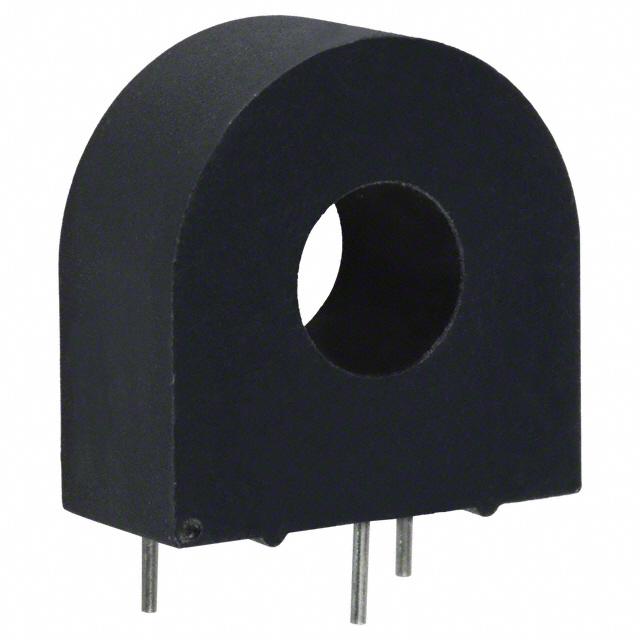

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AC1020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AC1020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AC1020 |
|---|---|
| Manufacturer | Talema |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.076 | $1.682 | $1.36 | $1.274 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.217 | $1.181 | $1.145 | $1.11 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AC1020 | Manufacturer | Talema |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30688 pcs | Data sheet | AC Series |
| Category | Transformers | Weight | 0.036 lb (16.33g) |
| Type | Non-Invasive (Solid Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.937" L x 0.438" W (23.80mm x 11.12mm) |
| Series | AC | Ratings | - |
| Packaging | Tube | Other Names | 1295-1095 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.937" (23.80mm) | Frequency Range | 50/60Hz |
| Energy Time (E.T.) | - | Detailed Description | 20A Current Sense Transformer 50/60Hz 41.8 Ohm Through Hole |
| DC Resistance (DCR) | 41.8 Ohm | Current Ratio | 1000:1 |
| Current Rating | 20A |
