NS10165T100MNA

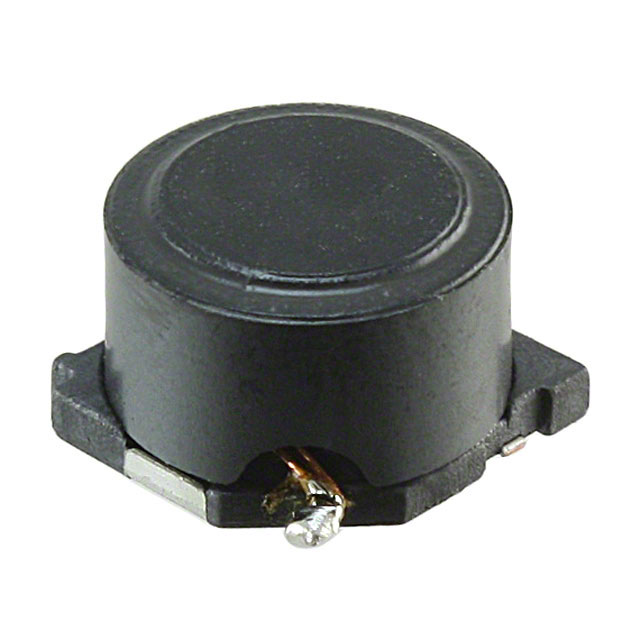

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NS10165T100MNA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NS10165T100MNA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NS10165T100MNA |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 10UH 4.66A 20.4 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | ||
|---|---|---|---|---|---|
| $0.17 | $0.151 | $0.147 | |||
| 5000 pcs | 12500 pcs | 25000 pcs | |||
| $0.142 | $0.137 | $0.132 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NS10165T100MNA | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | FIXED IND 10UH 4.66A 20.4 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 156087 pcs | Data sheet | NS10165T100MNA SpecNS Series Catalog |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) | Shielding | Shielded |
| Series | NS | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 587-3144-2 LM NS 10165T 100MNA |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.270" (6.85mm) | Frequency - Self Resonant | 16.6MHz |
| Detailed Description | 10µH Shielded Wirewound Inductor 4.66A 20.4 mOhm Max Nonstandard | DC Resistance (DCR) | 20.4 mOhm Max |
| Current Rating | 4.66A | Current - Saturation | 5.2A |
