NS10155T1R5NNA

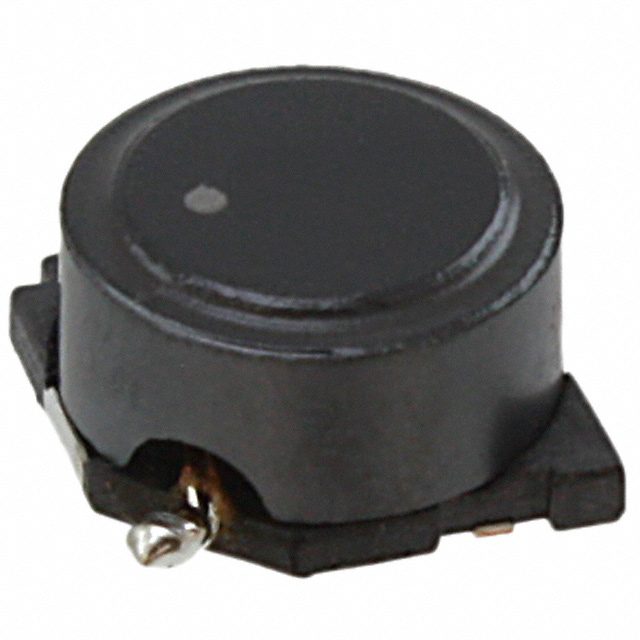

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NS10155T1R5NNA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NS10155T1R5NNA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NS10155T1R5NNA |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 1.5UH 8.39A 7.2 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | ||
|---|---|---|---|---|---|
| $0.19 | $0.154 | $0.145 | |||
| 5000 pcs | 12500 pcs | 25000 pcs | |||
| $0.14 | $0.136 | $0.131 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NS10155T1R5NNA | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | FIXED IND 1.5UH 8.39A 7.2 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 162489 pcs | Data sheet | NS Series CatalogNS10155T1R5NNA Spec |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) | Shielding | Shielded |
| Series | NS | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 587-3138-2 LM NS 10155T 1R5NNA |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1.5µH |
| Height - Seated (Max) | 0.230" (5.85mm) | Frequency - Self Resonant | 75.5MHz |
| Detailed Description | 1.5µH Shielded Wirewound Inductor 8.39A 7.2 mOhm Max Nonstandard | DC Resistance (DCR) | 7.2 mOhm Max |
| Current Rating | 8.39A | Current - Saturation | 11.9A |
