NR5040T2R2N

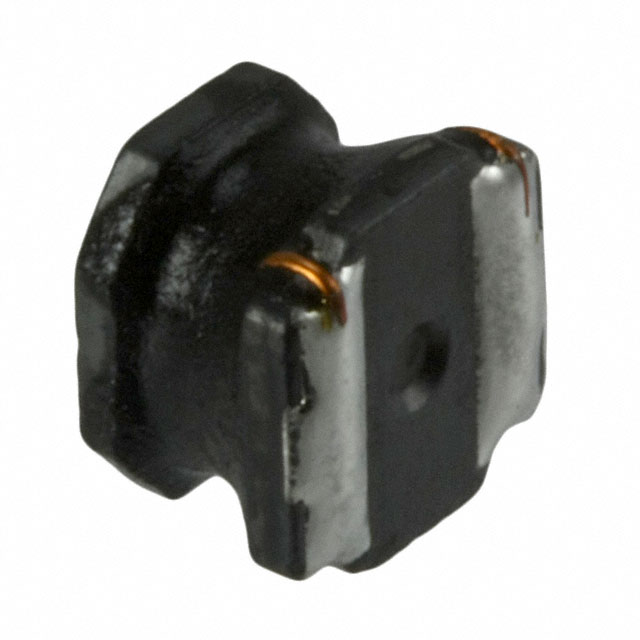

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NR5040T2R2N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NR5040T2R2N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NR5040T2R2N |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 2.2UH 3.5A 28.6 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | 37500 pcs |
|---|---|---|---|---|---|
| $0.064 | $0.06 | $0.057 | $0.055 | $0.053 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NR5040T2R2N | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | FIXED IND 2.2UH 3.5A 28.6 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 361763 pcs | Data sheet | NR5040T2R2N Spec SheetNR(H,S,V) Series Catalog |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.193" L x 0.193" W (4.90mm x 4.90mm) | Shielding | Shielded |
| Series | NR | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 587-2369-2 LM NR 5040T 2R2N |
| Operating Temperature | -25°C ~ 120°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 2.2µH |
| Height - Seated (Max) | 0.161" (4.10mm) | Frequency - Self Resonant | 42MHz |
| Detailed Description | 2.2µH Shielded Wirewound Inductor 3.5A 28.6 mOhm Max Nonstandard | DC Resistance (DCR) | 28.6 mOhm Max |
| Current Rating | 3.5A | Current - Saturation | 4.6A |
