Home > Products > RF/IF and RFID > RF Transceiver Modules > EYSGJNZWY

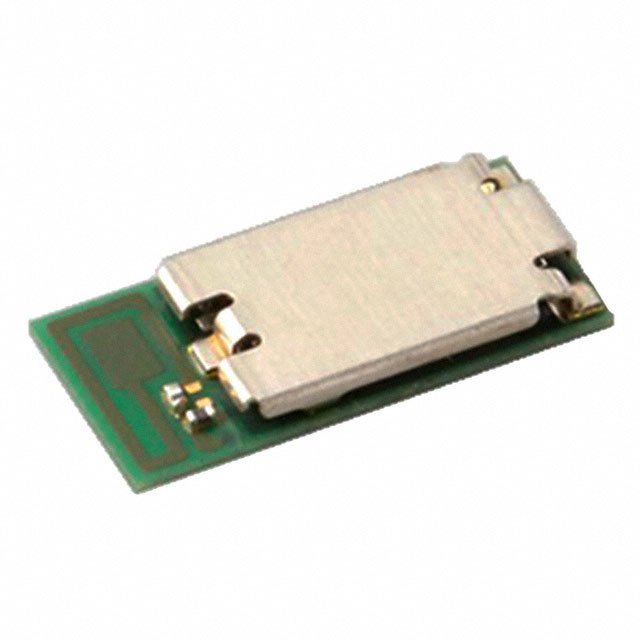

EYSGJNZWY

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EYSGJNZWY with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EYSGJNZWY
Manufacturer	Taiyo Yuden
Description	RF TXRX MOD BLUETOOTH TRACE ANT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 15009 pcs
Reference Price (In US Dollars)	2000 pcs
Reference Price (In US Dollars)	$2.042

Product parameter
Data sheet

Product parameter

Part Number	EYSGJNZWY	Manufacturer	Taiyo Yuden
Description	RF TXRX MOD BLUETOOTH TRACE ANT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15009 pcs	Data sheet	Bluetooth® low energy Module Overview EYSGJNZ(XX,WY) Datasheet
Category	RF/IF and RFID	Voltage - Supply	1.8 V ~ 3.6 V
Utilized IC / Part	nRF51822	Series	-
Serial Interfaces	I²C, SPI, UART	Sensitivity	-93dBm
RF Family/Standard	Bluetooth	Protocol	Bluetooth v4.2
Power - Output	4dBm	Packaging	Tape & Reel (TR)
Package / Case	28-SMD Module	Other Names	587-4372-2 GT EYSGJNZWY
Operating Temperature	-25°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Modulation	GFSK
Memory Size	256kB Flash, 32kB RAM	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	2.4GHz
Data Rate	1Mbps	Current - Transmitting	10.5mA ~ 16mA
Current - Receiving	13mA	Antenna Type	Integrated, Trace
