EST1060T3R3NDGA

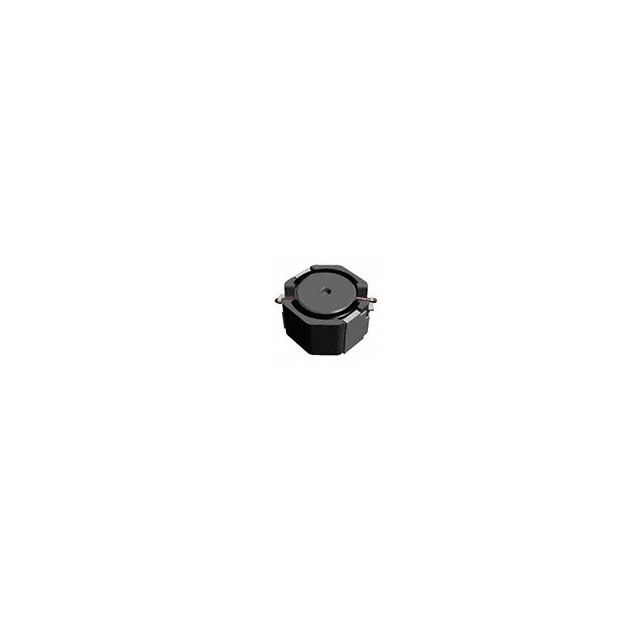

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EST1060T3R3NDGA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EST1060T3R3NDGA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EST1060T3R3NDGA |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 3.3UH 6.5A 12MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.337 | $0.307 | $0.297 | $0.287 | $0.277 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EST1060T3R3NDGA | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | FIXED IND 3.3UH 6.5A 12MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81556 pcs | Data sheet | EST1060T3R3NDGA Spec SheetEST1060T Series Brief |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.394" W (10.10mm x 10.00mm) | Shielding | Shielded |
| Series | ES | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 587-6052-2 LP EST1060T3R3NDGA |
| Operating Temperature | -55°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 3.3µH |
| Height - Seated (Max) | 0.248" (6.30mm) | Frequency - Self Resonant | 43MHz |
| Features | - | Detailed Description | 3.3µH Shielded Wirewound Inductor 6.5A 12 mOhm Max Nonstandard |
| DC Resistance (DCR) | 12 mOhm Max | Current Rating | 6.5A |
| Current - Saturation | 7A |
