AH104N2450D1-T

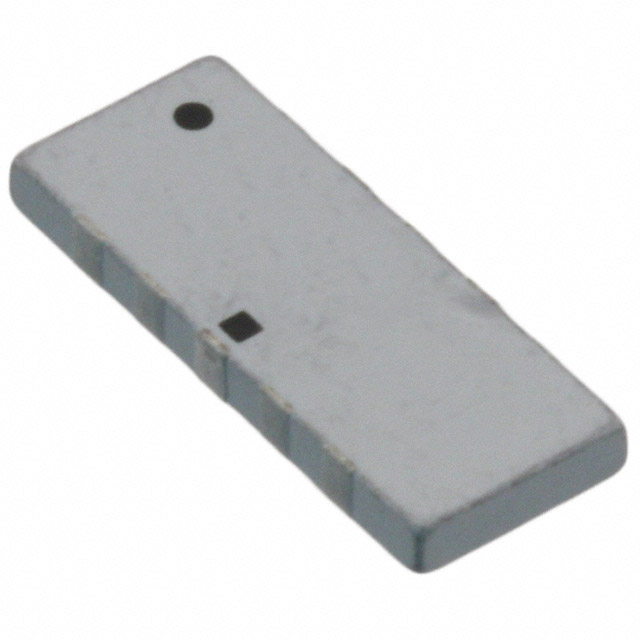

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH104N2450D1-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH104N2450D1-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH104N2450D1-T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | RF ANT 2.4GHZ/5.4GHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.755 | $0.681 | $0.608 | $0.547 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.487 | $0.426 | $0.353 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH104N2450D1-T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | RF ANT 2.4GHZ/5.4GHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86037 pcs | Data sheet | AF, AH Series, Chip Antennas CatalogAF, AH Series PkgingAH104N2450D1 Characteristics |
| Category | RF/IF and RFID | VSWR | 3 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Cut Tape (CT) |
| Other Names | 587-2203-1 | Number of Bands | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.039" (1.00mm) |
| Gain | 2.1dBi, 2.4dBi | Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.4GHz, 5.4GHz |
| Features | - | Detailed Description | 2.4GHz, 5.4GHz WLAN Chip RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz 2.1dBi, 2.4dBi Solder Surface Mount |
| Applications | WLAN | Antenna Type | Chip |
