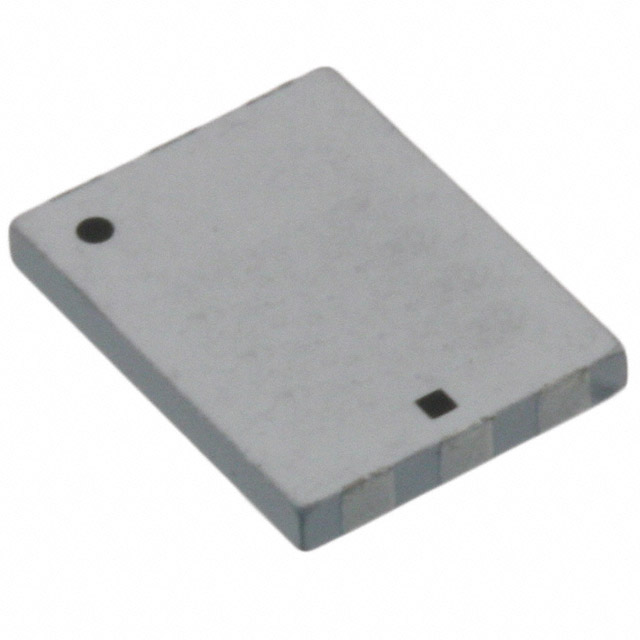

AH086M555003-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AH086M555003-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AH086M555003-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AH086M555003-T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | RF ANT 3.5GHZ/5.6GHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.33 | $0.307 | $0.296 | $0.284 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AH086M555003-T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | RF ANT 3.5GHZ/5.6GHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75428 pcs | Data sheet | AF, AH Series, Chip Antennas CatalogAH086M555003 CharacteristicsAF, AH Series Pkging |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Solder | Series | - |
| Return Loss | - | Packaging | Tape & Reel (TR) |
| Other Names | 587-2204-2 AH086M555003T PG AH 086M555003-T |
Number of Bands | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.039" (1.00mm) |
| Gain | 2.6dBi, 0.7dBi | Frequency Range | 3.1GHz ~ 8GHz |
| Frequency Group | UHF (3 GHz ~ 4 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 3.5GHz, 5.6GHz |
| Features | - | Detailed Description | 3.5GHz, 5.6GHz WiMax™ Chip RF Antenna 3.1GHz ~ 8GHz 2.6dBi, 0.7dBi Solder Surface Mount |
| Applications | WiMax™ | Antenna Type | Chip |
