Home > Products > Crystals, Oscillators, Resonators > Crystals > AV-21.948717MAHV-T

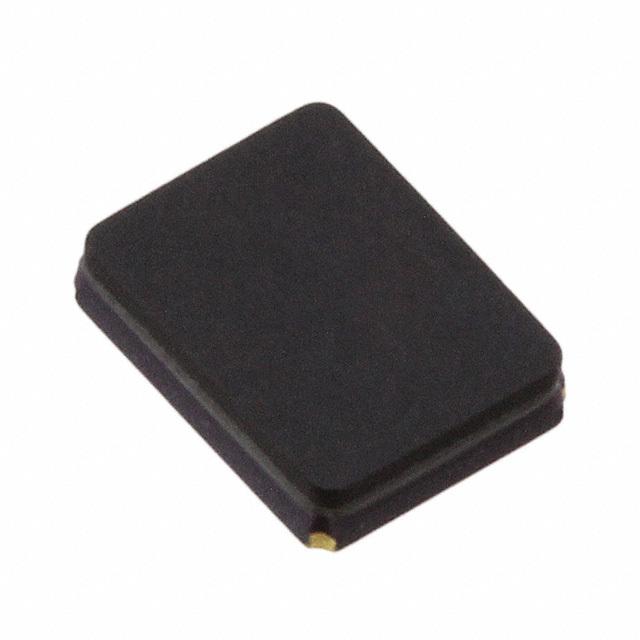

AV-21.948717MAHV-T

AV-21.948717MAHV-T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AV-21.948717MAHV-T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AV-21.948717MAHV-T
Manufacturer	TXC Corporation
Description	CRYSTAL 21.948717MHZ 8PF SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 113776 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.176

Product parameter
Data sheet

Product parameter

Part Number	AV-21.948717MAHV-T	Manufacturer	TXC Corporation
Description	CRYSTAL 21.948717MHZ 8PF SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	113776 pcs	Data sheet	AV Series Datasheet AV Series Datasheet Automotive Crystals, Oscillator Catalog
Category	Crystals, Oscillators, Resonators	Type	MHz Crystal
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)	Series	AV
Ratings	AEC-Q200	Packaging	Tape & Reel (TR)
Package / Case	4-SMD, No Lead	Operating Temperature	-40°C ~ 85°C
Operating Mode	Fundamental	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Load Capacitance	8pF	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.035" (0.90mm)	Frequency Tolerance	±30ppm
Frequency Stability	±30ppm	Frequency	21.948717MHz
ESR (Equivalent Series Resistance)	60 Ohms	Detailed Description	21.948717MHz ±30ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
