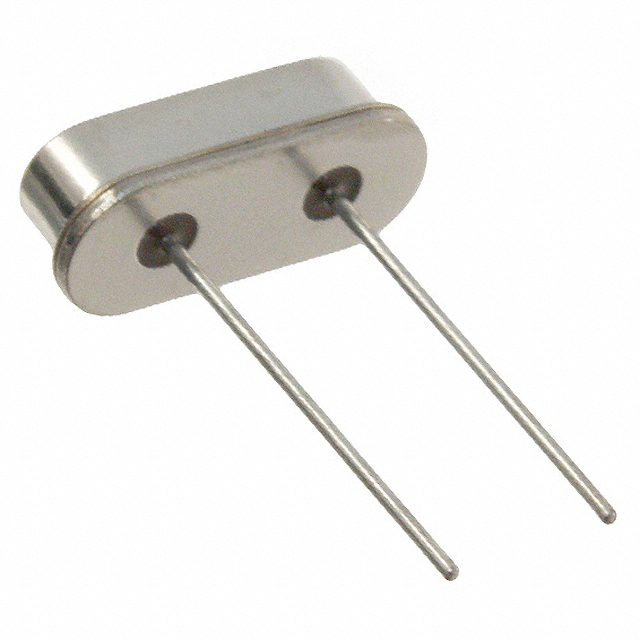

AS-16.9344MAHH-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AS-16.9344MAHH-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AS-16.9344MAHH-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AS-16.9344MAHH-B |
|---|---|
| Manufacturer | TXC Corporation |
| Description | CRYSTAL 16.9344MHZ 15PF T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.193 | $0.161 | $0.145 | $0.129 | $0.122 | |
| 1000 pcs | 2500 pcs | 5000 pcs | 10000 pcs | ||
| $0.103 | $0.097 | $0.093 | $0.09 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AS-16.9344MAHH-B | Manufacturer | TXC Corporation |
|---|---|---|---|
| Description | CRYSTAL 16.9344MHZ 15PF T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 217756 pcs | Data sheet | Crystal Part Number Guide, AutoAS Series DatasheetAutomotive Crystals, Oscillator Catalog |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.453" L x 0.197" W (11.50mm x 5.00mm) | Series | AS |
| Ratings | AEC-Q200 | Packaging | Bulk |
| Package / Case | HC-49/US | Other Names | 887-1592 AS169344MAHHB |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Fundamental |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Load Capacitance | 15pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.145" (3.68mm) |
| Frequency Tolerance | ±30ppm | Frequency Stability | ±30ppm |
| Frequency | 16.9344MHz | ESR (Equivalent Series Resistance) | 50 Ohms |
| Detailed Description | 16.9344MHz ±30ppm Crystal 15pF 50 Ohms HC-49/US |
