Home > Products > Resistors > Chip Resistor - Surface Mount > SCW-SC3LF-2R70-F

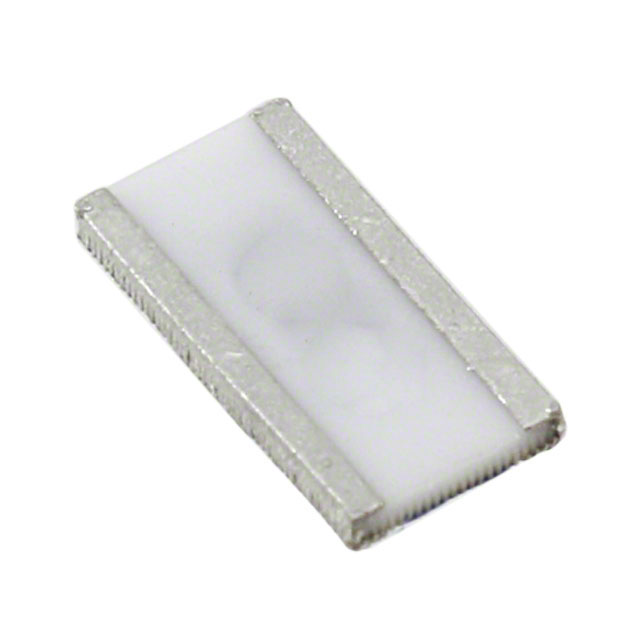

SCW-SC3LF-2R70-F

SCW-SC3LF-2R70-F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SCW-SC3LF-2R70-F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SCW-SC3LF-2R70-F
Manufacturer	TT Electronics
Description	RES SMD 2.7 OHM 3W 2512 WIDE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4302 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SCW-SC3LF-2R70-F	Manufacturer	TT Electronics
Description	RES SMD 2.7 OHM 3W 2512 WIDE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4302 pcs	Data sheet	SC3 Series
Category	Resistors	Tolerance	±1%
Temperature Coefficient	±100ppm/°C	Supplier Device Package	-
Size / Dimension	0.125" L x 0.250" W (3.18mm x 6.35mm)	Series	SC3
Resistance	2.7 Ohms	Power (Watts)	3W
Packaging	Tape & Reel (TR)	Package / Case	Wide 2512 (6432 Metric), 1225
Other Names	4545062447 Q7003073	Operating Temperature	-55°C ~ 150°C
Number of Terminations	2	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.035" (0.89mm)
Features	Automotive AEC-Q200, Moisture Resistant	Failure Rate	-
Detailed Description	2.7 Ohms ±1% 3W Chip Resistor Wide 2512 (6432 Metric), 1225 Automotive AEC-Q200, Moisture Resistant Thick Film	Composition	Thick Film
